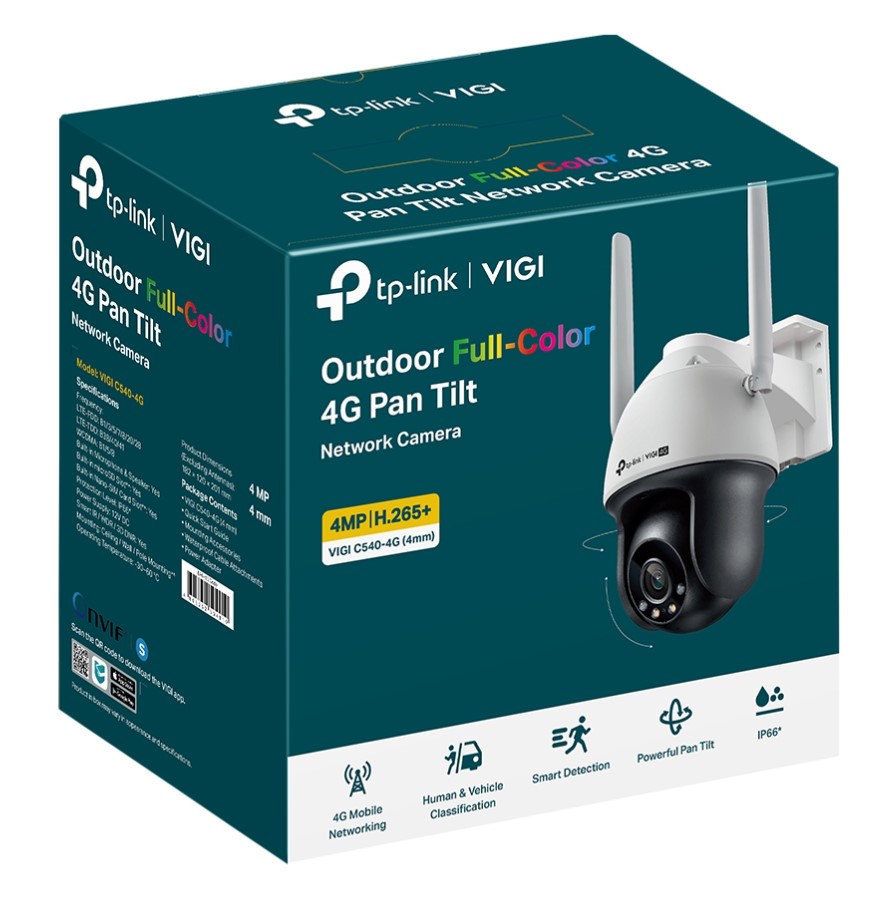

TP-Link VIGI C540-4G, IP security camera, Indoor & outdoor, Wired, 0.005 lm, RCM, BSMI, VCCI, NTRA, KC, Ceiling/wall
TP-Link VIGI C540-4G. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Turret. Lens viewing angle, horizontal: 80°, Lens viewing angle, vertical: 43°, Lens viewing angle, diagonal: 94°. Sensor type: CMOS, Optical sensor size: 25.4 / 3.06 mm (1 / 3.06"). Detect distance: 80 m, Observe distance: 33 m, Recognize distance: 16 m
| Performance | |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Auto patrol mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Luminous flux | 0.005 |
| Certification | RCM, BSMI, VCCI, NTRA, KC |
| Design | |
| Form factor | Turret |
| Mounting type | Ceiling/wall |
| Product colour | Black, White |
| Housing material | Plastic |
| International Protection (IP) code | IP66 |
| Camera | |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 80 |
| Lens viewing angle, vertical | 43 |
| Lens viewing angle, diagonal | 94 |
| Tilt angle range | 0 - 120 |
| Tilt speed | 44 |
| Pan range | 0 - 348 |
| Pan speed | 44 |
| Camera shutter speed | 1/3 - 1/10000 |
| Number of Privacy masking areas | 4 |
| Image sensor | |
| Optical sensor size | 25.4 / 3.06 |
| Sensor type | CMOS |
| Lens system | |
| Zoom capability | Yes |
| Number of lenses | 1 |
| Detect distance | 80 |
| Observe distance | 33 |
| Recognize distance | 16 |
| Lens diameter | 4 |
| Maximum aperture number | 1.6 |
| Identify distance | 8 |
| Minimum aperture number | 1.6 |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 30 |
| LED type | IR/White |
| Number of illumination LEDs | 4 |
| Video | |
| Maximum resolution | 2560 x 1440 |
| Total megapixels | 4 |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions | 320 x 240, 352 x 288, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440 |
| Frame rate | 30 |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
| Privacy masking | Yes |
| Bit rate control | Constant Bit Rate (CBR), Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | 256 Kbps - 4 Mbps |
| Digital Wide Dynamic Range (DWDR) | Yes |
| 3D positioning | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| Sample rate | 8 |
| Signal-to-Noise Ratio (SNR) | 52 |
| Built-in microphone | Yes |
| Bit rate range | 64 - 64 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| SIM card slot | Yes |
| SIM card type | NanoSIM |
| 4G standard | LTE-TDD & LTE-FDD |
| 3G standards | WCDMA |
| Live view | Yes |
| Number of simultaneous live view channels | 3 |
| Storage | |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Password protection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Intelligent Video Surveillance (IVS) system features | Human detection |
| Mirror | Yes |
| Digest authentication | Yes |
| Management features | |
| Reset button | Yes |
| Behavior analysis | Intrusion detection, Line crossing detection |
| Power | |
| Power source type | DC |
| DC output voltage | 12 |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 |
| Storage temperature (T-T) | -40 - 60 |
| Operating relative humidity (H-H) | 0 - 95 |
| Storage relative humidity (H-H) | 0 - 95 |
| Weight & dimensions | |
| Width | 120 |
| Depth | 182 |
| Height | 201 |
| Weight | 690 |
| Features | |
| Basic event | Motion Detection, Camera Tampering Detection, Exception |
| Packaging data | |
| Package width | 163 |
| Package depth | 213 |
| Package height | 243 |
| Package weight | 1.16 |
| Sustainability | |
| Compliance certificates | CE, RoHS |
| Packaging content | |
| Number of cameras | 1 |
| Mounting kit | Yes |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
