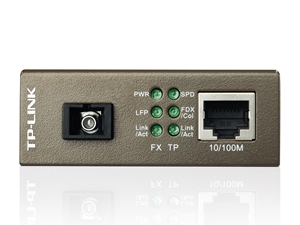

TP-Link MC112CS, 100 Mbit/s, IEEE 802.3, IEEE 802.3u, 10,100 Mbit/s, 10BASE-TX, 100BASE-FX, 100BASE-TX, Full, Half, Cat3, Cat4, Cat5
TP-Link MC112CS. Maximum data transfer rate: 100 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3u, Ethernet LAN data rates: 10,100 Mbit/s. Maximum transfer distance: 20000 m, Fiber mode structure: Single-mode. Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Power consumption (max): 2.41 W
| Network | |
|---|---|
| Maximum data transfer rate | 100 |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Ethernet LAN data rates | 10,100 |
| Copper ethernet cabling technology | 10BASE-TX, 100BASE-FX, 100BASE-TX |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full, Half |
| Cable types supported | Cat3, Cat4, Cat5 |
| Performance | |
| Maximum transfer distance | 20000 |
| Wavelength-division multiplexing (WDM) | Yes |
| Fiber mode structure | Single-mode |
| Features | |
| Internal | No |
| LED indicators | Yes |
| Product colour | Black |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Power | |
| Power consumption (max) | 2.41 |
| Weight & dimensions | |
| Width | 95 |
| Depth | 73 |
| Height | 27 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Certificates | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
