Product Code: KVA-KA7178

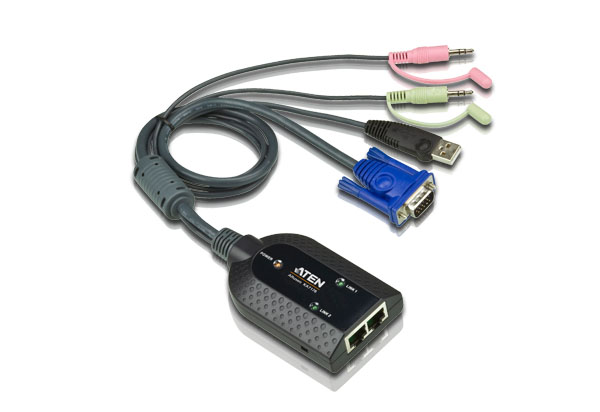

The KA7178 KVM Adapter Cable connects the KVM switch to the video, USB and audio ports of the target computer. In addition to Virtual Media support, it provides two Cat 5e/6 connectors, allowing a computer to connect to two ALTUSEN Matrix KVM switches. This allows consoles on different switches access to the same computer.
Auto Signal Compensation (ASC), no DIP switch setting needed for the different distances
Keyboard and mouse emulation - keeps your server functioning smoothly when it is disconnected from the switch
Superior video quality - supports resolution up to 1920 x 1200 (Reduced blanking)*
Dual Cat 5e/6 connections and Virtual Media Support
Specifications
Connectors
Link 2 x RJ-45 Female
Computer 1 x USB Type A Male
1 x HDB-15 Male
2 x Mini Stereo Plug
LEDs
Online 2 (Green)
Power 1 (Orange)
Environmental
Operating Temperature 0–50°C
Storage Temperature -20–60°C
Physical Properties
Housing Plastic
Weight 0.17 kg ( 0.37 lb )
Dimensions (L x W x H) 9.10 x 5.60 x 2.12 cm
(3.58 x 2.2 x 0.83 in.)
