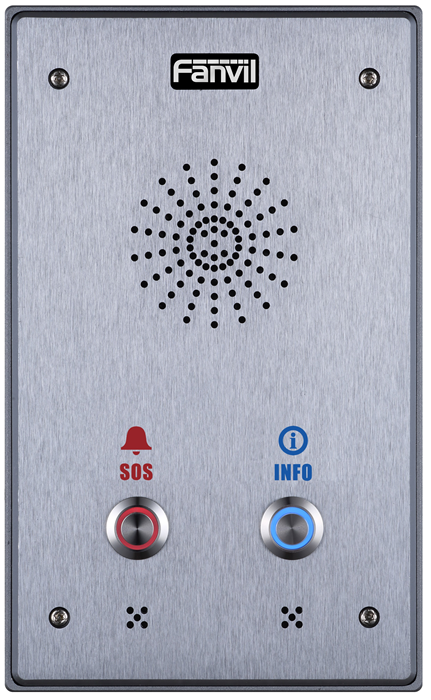

i12D 2 – FANVIL Audio Door Intercom – 2 SIP Lines
2 Button
Features:
2 SIP Lines
PoE enabled(Power over Ethernet)
Full-duplex speakerphone
Intelligent DSS Keys (Speed dial)
Wall-mount installation
Special integrated noise reduction module
Omnidirectional voice pickup
2 embedded short-circuit input interfaces
2 embedded short-circuit output interfaces. Support 4 controlled events: remote DTMF; remote server’s commands; interaction with short circuit input; talking status
Output interface for active speaker
Audio record output interface
External Power Supply
Multicast
All in ONE: door access, intercom and paging service
Industrial standard certifications: IP65, IK10, CE/FCC
Call Features:
Intercom
Speed dial(speed dial key)
Auto-answering (per line)
Voice message (on the server)
Local 3-way Conference
Phone Features:
Call log (900 entries, in/out/missed)
Programmable DSS keys
Network time synchronization
Action URL / Active URI
Audio:
Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
Wideband CODEC: G.722
Full-duplex Acoustic Echo Canceller (AEC) ‚ Handsfree mode, 96ms tail-length
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
Packet Loss Concealment (PLC)
Dynamic adaptive jitter buffer up to 300ms
DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833)/ SIP INFO
Omnidirectional voice pickup: pickup distance to 5 m. Networking
Physical: RJ45 Ethernet Jacket x2: Network x1 (802.3AF POE Enabled), LAN x1 (Bridged to Network)
IP configuration: Static / DHCP / PPPoE
Network access control: 802.1x
VPN: L2TP (Basic Unencrypted) / OpenVPN
VLAN
QoS
Protocols:
SIP2.0 over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
802.1x
L2TP (Basic Unencrypted)
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
Tr069
Physical Specifications:
2 Hands-free keys or DSS Keys (Speed dial)
Rj45 Ethernet Jacket x2: Network x1 (802.3AF POE enabled), LAN x1 (Bridged to network)
$ 399.00
399.0
AUD
$ 399.00
Not Available For Sale
-
