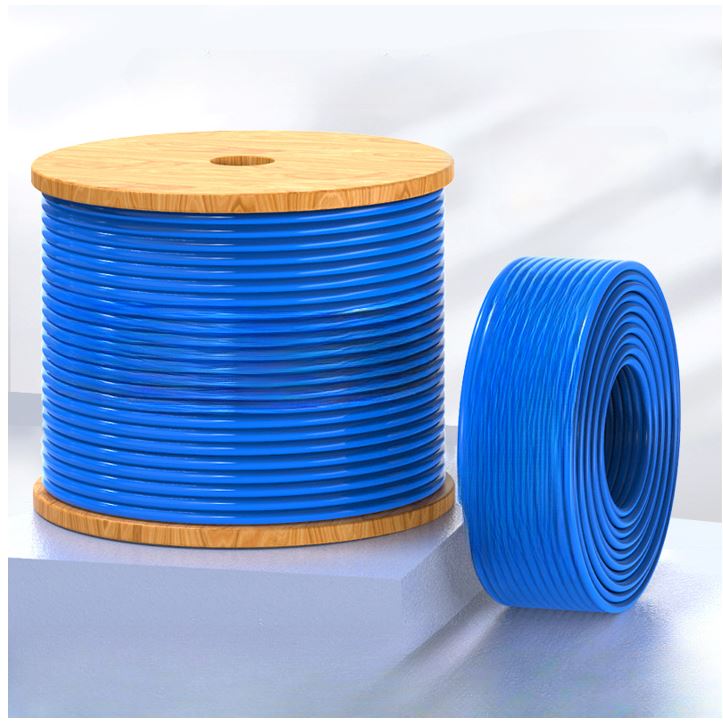

8Ware 350m CAT6A Ethernet 24AWG 30V LAN Cable Roll Bare Copper Twisted Core PVC Jacket on Reel Box Blue >305m

https://www.bosspacific.com.au/web/image/product.template/68448/image_1920?unique=8b46ec7

8Ware 350m CAT6A Ethernet 24AWG 30V LAN Cable Bare Copper Twisted Core PVC Jacket Reel Box Blue >305m
Conductor Construction(mm) 1/0.508±0.005
Material Bare Copper
Cabling OD (mm) 0.508
Insulation Material HDPE
OD(mm) 0.90±0.05
Avg. Thickness (mm) 0.18
Color 1、2、3、4
Cores Twisted Yes
Drain Construction(mm) -----
Material -----
Al Constructive Side -----
Overlap Rate -----
Mylar Overlap Rate -----
Assemble Cabling OD (mm) 5.00 (Ref.) + Filler
Mylar Overlap Rate -----
Al Constructive Side -----
Drain Construction(mm) -----
Material -----
Braid Construction(mm) -----
Material -----
Coverage -----
Jacket Material PVC (Bright)
OD(mm) 6.20±0.20
Avg. Thickness (mm) 0.6
Color BLUE (PVC001-6027)PT287C
Jet Print Color BLACK
Electrical Characters:
1. Voltage Rating: 30V Temperature Rating: 60℃
2. Dielectric Strength: AC-500V/MIN
3. Insulation resistance: 100M (OHMS * KM MIN at 20℃）
Physical Characters:
Test Object Jacket
AWG 24

$ 2,999.00 2999.0 AUD $ 2,999.00

Not Available For Sale

  • Brand
  • Weight (kg)
  • Product Width (cm)
  • Product Height (cm)
  • Warranty
  • M.2 Length

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

Brand 8Ware
Weight (kg) 16.5
Product Width (cm) 400
Product Height (cm) 240
Warranty 12
M.2 Length 400
