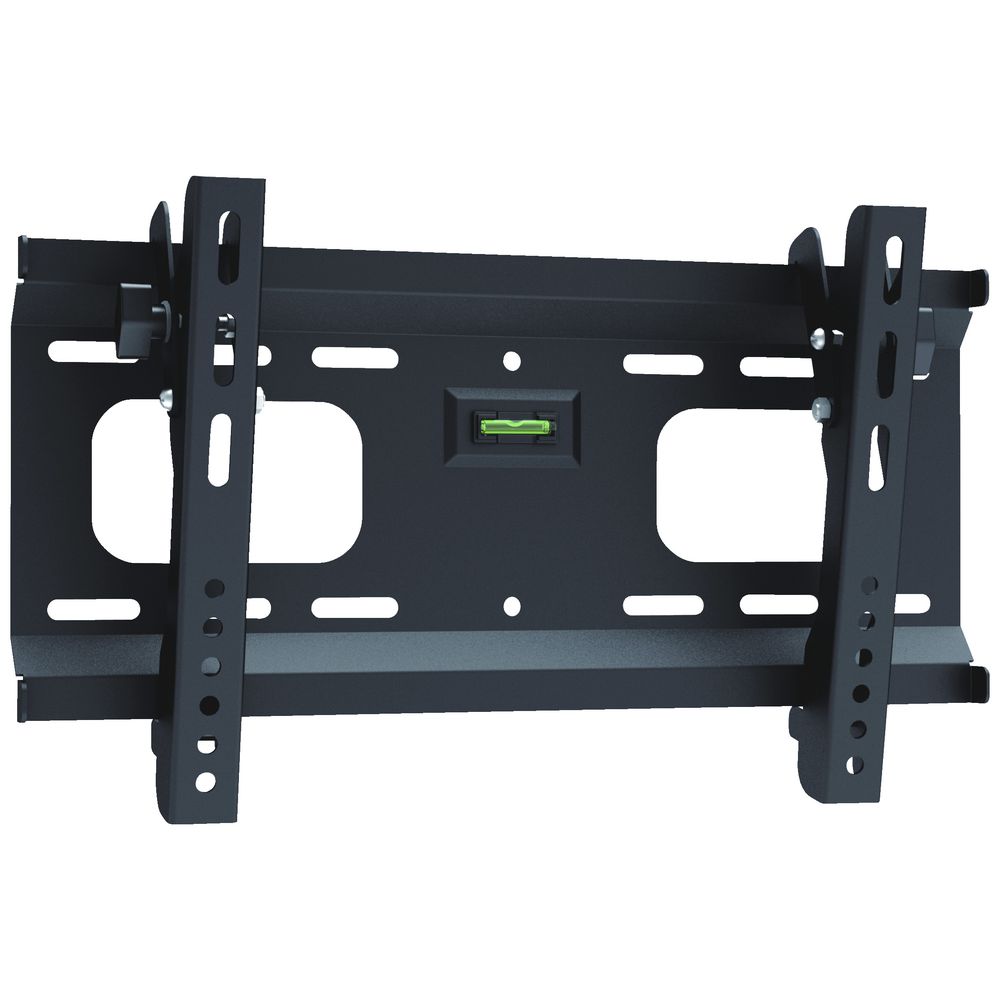

Easy to use and install, the popular model PLB-42 is designed to fit any 32''-55” Flat Panel TV up to 75kgs/165lbs. This unit mounts in tilting position and tilts up to a 10° to position the screen for an optimal viewing experience. Integrated bubble level is included for easy installation alignment.
FEATURES
●Easy-Grip Knobs: for quick tilt and lock
●Open Architecture: provides increased ventilation and easier access to wires
●Integrated Bubble Level: assures alignment
SPECIFICATION
Product Category: Tilt TV Wall Mount
Rank: Standard
Material: Steel
Metal Sheet Thickness: Wall Plate THK=2mm cold-rolled sheet,Bracket Arm THK=2mm cold-rolled sheet (Wall Plate THK=0.079" cold-rolled sheet,Bracket Arm THK=0.079" cold-rolled sheet)
Surface Finish: Powder Coating
Color: Fine Texture Black
Dimensions: 46x450x270mm (1.8"x17.7"x10.6")
Fit Screen Size: 32"-55"
Mounting Hole Pattern : VESA Universal
VESA Compatible: 100x100,200x100,200x200,400x200
Max. VESA: 400x200
Weight Capacity: 75kg (165lbs)
Strength Tested: 4 Times Approved
Profile: 46mm (1.8")
Tilt Range: 0°~-10°
Screen Freely Tilting: Yes
Installation: Solid wall,Double Stud(406mm)
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Cable Management: No
Anti-theft: No
Bubble Level: Built-in Bubble Level (Integrated on Wall Plate)
Certification: UL
$ 49.50
49.5
AUD
$ 49.50
