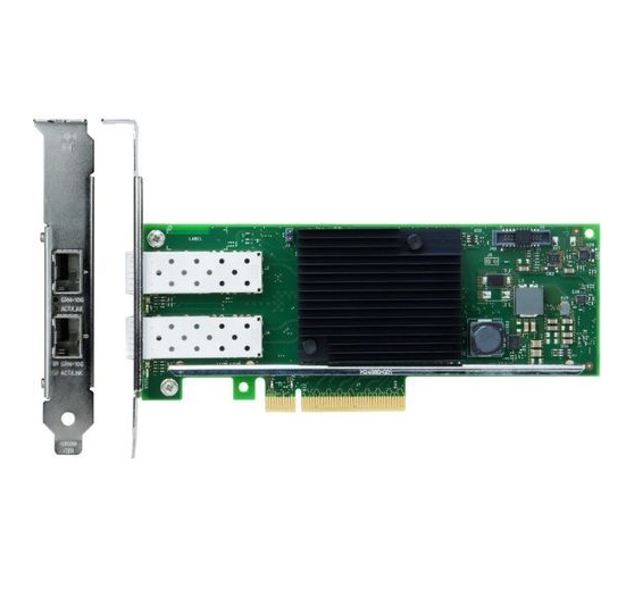

Lenovo 7ZT7A00537, Internal, Wired, PCI Express, Fiber, 10000 Mbit/s, Black, Green
Lenovo 7ZT7A00537. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Fiber. Maximum data transfer rate: 10000 Mbit/s. Product colour: Black, Green
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Fiber |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| Network | |
| Maximum data transfer rate | 10000 |
| Networking standards | IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1as, IEEE 802.1p, IEEE 802.3ae, IEEE 802.3x |
| Wake-on-LAN ready | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9728 |
| VLAN tagging | Yes |
| iSCSI support | Yes |
| Design | |
| Component for | Server |
| Product colour | Black, Green |
| Internal | Yes |
| Certification | EN55022 EN55024 EN 61000-3-2 EN 61000-3-3 ICES-003, Issue-004 FCC 47 CFR Part 15 Class A VCCI AS/NZS CISPR 22 / C-tick RRL for KC BSMI UL 94 V-1 |
| System requirements | |
| Compatible operating systems | Microsoft Windows Server 2008 R2 Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 SUSE Linux Enterprise Server 11 for AMD64/EM64T SUSE Linux Enterprise Server 11 with Xen for AMD64/EM64T SUSE Linux Enterprise Server 12 SUSE Linux Enterprise Server 12 with XEN VMware vSphere 5.5 (ESXi) VMware vSphere 6.0 (ESXi) VMware vSphere 6.5 (ESXi) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 |
| Storage temperature (T-T) | -20 - 65 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 80 |
| Operating altitude | 0 - 2134 |
| Weight & dimensions | |
| Width | 15 |
| Depth | 167 |
| Height | 69 |
| Packaging data | |
| Quantity per pack | 1 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Flow control support | Yes |
| Intel® Virtualization Technology (Intel® VT) | Yes |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Intelligent Offloads | Yes |
| Intel Data Direct I/O Technology | Yes |
| Receive Side Scaling (RSS) | Yes |
Specifications
| Brand | Lenovo |
