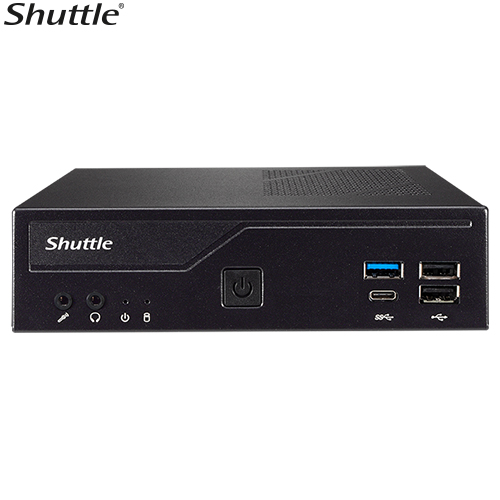

887993005119 Shuttle DH610 Slim Mini PC 1L Barebone-Intel 12th/13th Gen , 2xDDR4, 2.5" HDD/SSD bay, 2xLAN (1G 2.5G), 2xRS232(RS422/485), HDMI, 2xDP, 120W, Vesa M

Product Code: 887993005119

12th Gen Hybrid Power Makes Multitask Easy
Shuttle XPC Slim series DH610 supports Intel® 12 th Gen LGA1700 processors. With Intel® new performance hybrid architecture and UHD graphics 700 series integrated, the model computes performance along with the potential for powering AI deployment. Support up to three displays via one HDMI 2.0b and two DisplayPort for display productivity and flexibility. Moreover, the model provides comprehensive connectivity with multiple ports, including four USB 3.2 Gen1 (Including one Type-C), four USB 2.0, two RS232, Intel® 2.5GbE + Intel® 1GbE LAN, and two M.2 expansion slots. DH610 can perform a reliable operation suitable for Office, Digital Signage, Kiosks, and other Multi-platform AI deployment.
- Support Intel® 12th Core™ i3/i5/i7/i9 / Pentium® Gold / Celeron® 65W processor
- Supports up to 64GB DDR4-3200 memory
- Supports three independent displays via one HDMI 2.0b and two DisplayPort
- Flexible connectivity: one M.2 2280 M Key (PCIe 4.0 x4/SATA), one M.2 2230 E
- USB 3.2 Gen1(Including one Type-C), four USB 2.0, and two RS232
- Intel® 2.5GbE + Intel® 1GbE LAN that supports Wake On Lan and Teaming Mode
CPU
Intel® 12th Gen LGA1700 socket Core i3/i5/i7/i9, Pentium, Celeron 65W Processor
Chipset
Intel® H610
Video Engine Processor
Intel® UHD Graphics series
Memory
2 x DDR4 3200/2933/2666 MHz, Max. 64GB
Storage
1 x 2.5"" HDD/SSD (max. 12.5 mm) 1 x SD card
Expansion Slots
1 x M.2 2280, M Key 1 x M.2 2230, E Key
Video Output
1x HDMI Port
2x DisplayPort
1x VGA Port (Optional)
2x USB 3.2 Gen1/Gen2 (Front)
2x USB 2.0 (Front)
2x USB 3.2 Gen1/Gen2 (Rear)
2x USB 2.0 (Rear)
1x COM Port
1 x RS232/422/485, Support 5V/12V"
1x Line out/Mic in
Network LAN
1 x Intel® 1G LAN
1 x Intel® 2.5G LAN"
Wifi
Optional
VESA
Bracket included
