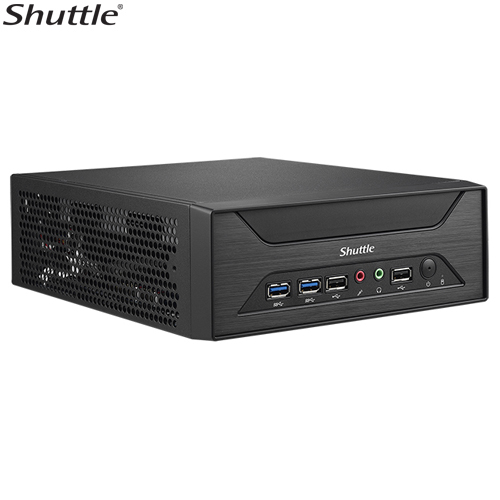

Shuttle XPС slim Barebone XH270 black, LGA 1151, Intel H270, HD-Graphics, 120W, 3L sized PC, PC barebone, Intel® H270, LGA 1151 (Socket H4), DDR4-SDRAM, Serial ATA III
Shuttle XPС slim Barebone XH270 black, LGA 1151, Intel H270, HD-Graphics, 120W. Chassis type: 3L sized PC, Product type: PC barebone. Motherboard chipset: Intel® H270, Processor socket: LGA 1151 (Socket H4), BIOS type: UEFI AMI. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 32 GB. Supported storage drive types: HDD & SSD, Storage drive interface: Serial ATA III, RAID levels: 0, 1, 5, 10. Ethernet LAN (RJ-45) ports: 2. Cooling type: Active. Power supply: 120 W
| Processor | |
|---|---|
| Built-in processor | No |
| Memory | |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 32 |
| Supported memory clock speeds | 2133,2400 |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage | 1.2 |
| ECC | No |
| Storage | |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5 |
| Storage drive interface | Serial ATA III |
| Number of storage drives supported | 4 |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
| On-board graphics card | No |
| Graphics card family | Intel |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel® I211 |
| Ports & interfaces | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Serial ports quantity | 1 |
| Design | |
| Chassis type | 3L sized PC |
| Product colour | Black |
| Cooling type | Active |
| LED indicators | HDD, Power |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | PC barebone |
| Safety | CB, BSMI, ETL |
| Performance | |
| Motherboard form factor | mini ITX |
| Motherboard chipset | Intel® H270 |
| Processor socket | LGA 1151 (Socket H4) |
| Number of processors supported | 1 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| BIOS type | UEFI AMI |
| Audio output channels | 5.1 |
| Audio system | HD |
| Processor special features | |
| Intel® Optane™ Memory Ready | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Certificates | |
| Certification | FCC, CE, BSMI, C-Tick, RoHS |
| Software | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
| Linux operating systems supported | Yes |
| Operating system installed | No |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Power | |
| Power supply type | External AC adapter |
| Power supply | 120 |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 |
| AC input frequency | 50 - 60 |
| AC adapter output voltage | 19 |
| AC adapter output current | 6.32 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 |
| Operating relative humidity (H-H) | 10 - 90 |
| Weight & dimensions | |
| Width | 240 |
| Depth | 200 |
| Height | 72 |
| Weight | 2.2 |
| Package weight | 3.5 |
| Packaging content | |
| Power cord included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Drivers included | Yes |
| Display included | No |
| Other features | |
| Country of origin | China |
Specifications
| Brand | Shuttle |
