766907021912 ViewSonic LS832WU 5,000 ANSI Lumens WUXGA Ultra Short Throw Laser Installation Projector

766907021912 ViewSonic LS832WU 5,000 ANSI Lumens WUXGA Ultra Short Throw Laser Installation Projector

(0 review)

Product Code: 766907021912

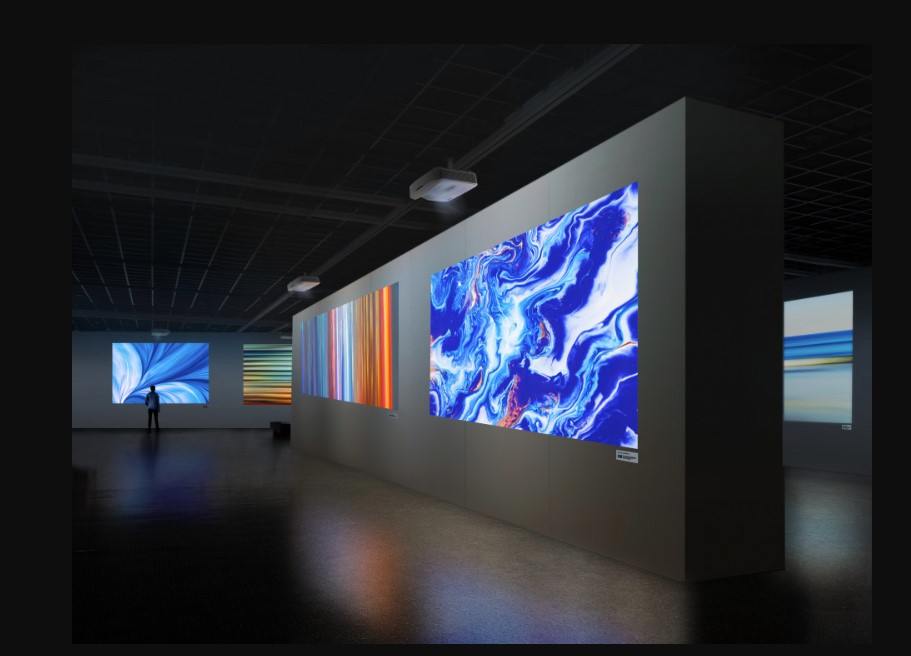

The LS832WU is part of ViewSonic’s Luminous Superior series, a lamp-free high brightness projector lineup designed for both commercial and educational spaces. This advanced 5,000 ANSI Lumens WUXGA ultra short throw laser projector is a go-to digital signage solution for public and commercial applications, such as museums, storefronts, shopping malls, and airports. The LS832WU's 0.25 ultra short throw ratio allows for a 100” screen from only 28 cm away, and the screen size can be further expanded up to 170”, offering a lower cost-per-inch compared to other types of commercial displays. Adopting the 2nd generation Laser Phosphor technology, it produces consistent high bri
SPECIFICATIONS
Specification
Projection System: 0.67" WUXGA
Native Resolution: 1920x1200
Brightness: 5000 (ANSI Lumens)
Brightness (Center Lumens): 6000
Contrast Ratio: 3000000:1
Display Color: 1.07 Billion Colors
Light Source Type: Laser Phosphor
Light Source Life (hours) with Normal Mode: 20000
Light Source Life (hours) with SuperEco Mode: 30000
Lens: F=2.44, f=3.70mm
Projection Offset: 133%±3%
Throw Ratio: 0.253
Optical Zoom: Fixed
Digital Zoom: 0.8x-2.0x
Image Size: 80"- 170"
Throw Distance: 0.17-0.66m
(100"@0.28m)
Keystone: H:+/-10° , V:+/-10°
Audible Noise (Normal): 34dB
Audible Noise (Eco) : 28dB
Input Lag: 33.2ms
Resolution Support: VGA(640 x 480) to 4K(3840 x 2160)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Horizontal Frequency: 15K- 91KHz
Vertical Scan Rate: 24- 85Hz
Input
Computer in (share with component): 1
HDMI: 2
(HDMI 2.0/ HDCP 1.4/2.2)
Audio-in (3.5mm): 1
Microphone in: 1
Output
Monitor out: 1
Audio-out (3.5mm): 1
Speaker: 10W x1
USB Type A (Power): 1 (5V/1.5A)
Control
RS232 (DB 9-pin male): 1
RJ45 (LAN control): 1
USB Type B (Services): 1
Others
Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
(AC in)
Power Consumption: Normal: 328W
Standby: <0.5W
Operating Temperature: 5~40℃
Carton: Brown
Net Weight: 5.8kg

$ 5,799.00 $ 5,799.00 (Tax excluded)

  • Brand
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Viewsonic LS832WU, 5000 ANSI lumens, WUXGA (1920x1200), 3000000:1, 2032 - 4318 mm (80 - 170"), 1.07 billion colours, 10°

Viewsonic LS832WU. Projector brightness: 5000 ANSI lumens, Projector native resolution: WUXGA (1920x1200), Contrast ratio (typical): 3000000:1. Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focal length range: 3.7 mm, Zoom type: Fixed, Offset: 133%. Serial interface type: RS-232, HDMI version: 2.2/1.4. Noise level: 34 dB, Noise level (economic mode): 28 dB

Projector
Screen size compatibility2032 - 4318
Projector brightness5000
Projector native resolutionWUXGA (1920x1200)
Contrast ratio (typical)3000000:1
Number of colours1.07 billion colours
Keystone correction, horizontal10
Keystone correction, vertical10
Horizontal synchronization (min)15
Horizontal synchronization (max)91
Light source
Light source typeLaser
Service life of light source20000
Service life of light source (economic mode)30000
Lens system
Focal length range3.7
Zoom capabilityYes
Zoom typeFixed
Throw ratio0.253
Offset133
Ports & interfaces
HDMI version2.2/1.4
USB 2.0 ports quantity1
USB 2.0 Type-A ports quantity1
USB 2.0 Type-B ports quantity1
Audio (L/R) in1
Microphone inYes
Serial interface typeRS-232
VGA (D-Sub) ports quantity1
HDMI ports quantity2
Network
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Features
Noise level (economic mode)28
Noise level34
Multimedia
Built-in speaker(s)Yes
RMS rated power10
Number of built-in speakers1
Design
Market positioningPortable
Product typeUltra short throw projector
Product colourWhite
Display
Built-in displayNo
Power
Power sourceAC
Power consumption (typical)328
Power consumption (standby)0.5
AC input voltage100-240
AC input frequency50-60
Operational conditions
Operating temperature (T-T)5 - 40
Weight & dimensions
Width382
Depth318
Height132
Weight7
Package width518
Package depth420
Package height313
Package weight10
Packaging content
Remote control includedYes
Logistics data
Pallet gross length94
Pallet gross width114
Pallet gross height2.08
Products per master (outer) case1
Harmonized System (HS) code8528620000

Specifications

Brand ViewSonic
