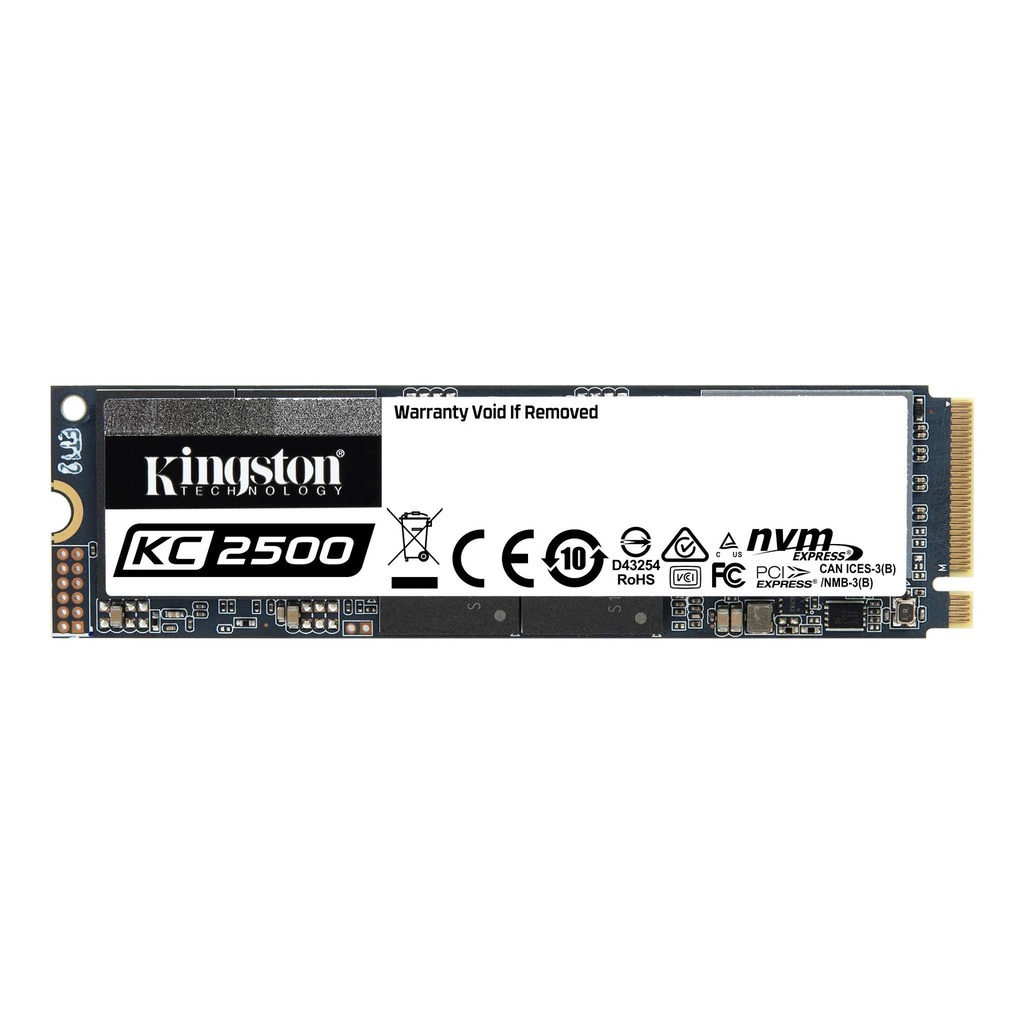

740617307207 Kingston KC2500 2TB M.2 NVMe PCle SSD 3D NAND 3500/2900MB/s 375K/300K IOPS 1.2PBW XTS-AES 256 bit Encryption 2M hrs MTBF 5yr wty

Product Code: 740617307207

Kingston KC2500 1TB M.2 NVMe PCle SSD 3D NAND 3,500/2,900MB/s 375,000/300,000 IOPS 600TBW XTS-AES 256 bit Encryption 2M hrs MTBF 5yr wty
Kingston’s KC2500 NVMe PCIe SSD delivers powerful performance using the latest Gen 3.0 x 4 controller and 96-layer 3D TLC NAND. With read/write speeds up to 3,500/2,900MB/s1, KC2500 delivers outstanding endurance and improves the workflow in desktop, workstations, and high-performance computing (HPC) systems. The compact M.2 design gives greater flexibility, increasing storage but also saving space.
Available in capacities from 250GB–2TB2 to meet your system’s needs. KC2500 is a self-encrypting drive that supports end-to-end data protection using XTS-AES 256 bit Hardware-based encryption and allows the usage of independent software vendors with TCG Opal 2.0 security management solutions such as Symantec™, McAfee™, WinMagic® and others. KC2500 also has built-in Microsoft eDrive support, a security storage specification for use with BitLocker.
Form Factor M.2 2280
Interface NVMe™ PCIe Gen 3.0 x 4 Lanes
Capacities 250GB, 500GB, 1TB, 2TB
Controller SMI 2262EN
NAND 96-layer 3D TLC
Encrypted XTS-AES 256 bit
Sequential Read/Write1 250GB – up to 3,500/1,200MB/s
500GB – up to 3,500/2,500MB/s
1TB – up to 3,500/2,900MB/s
2TB – up to 3,500/2,900MB/s
Random 4K Read/Write1 250GB – up to 375,000/300,000 IOPS
500GB – up to 375,000/300,000 IOPS
1TB – up to 375,000/300,000 IOPS
2TB – up to 375,000/300,000 IOPS
Total Bytes Written (TBW)3 250GB – 150TBW
500GB – 300TBW
1TB – 600TBW
2TB – 1.2PBW
Power Consumption .003W Idle / .2W Avg / 2.1W (MAX) Read / 7W (MAX) Write
Storage Temperature -40°C~85°C
Operating Temperature 0°C~70°C
Dimensions 80mm x 22mm x 3.5mm
Weight 250GB – 8g
500GB – 10g
1TB – 10g
2TB – 11g
Vibration Operating 2.17G Peak (7-800Hz)
Vibration Non-operating 20G Peak (20-1000Hz)
MTBF 2,000,000
Warranty/Support4 Limited 5-year warranty with free technical support
