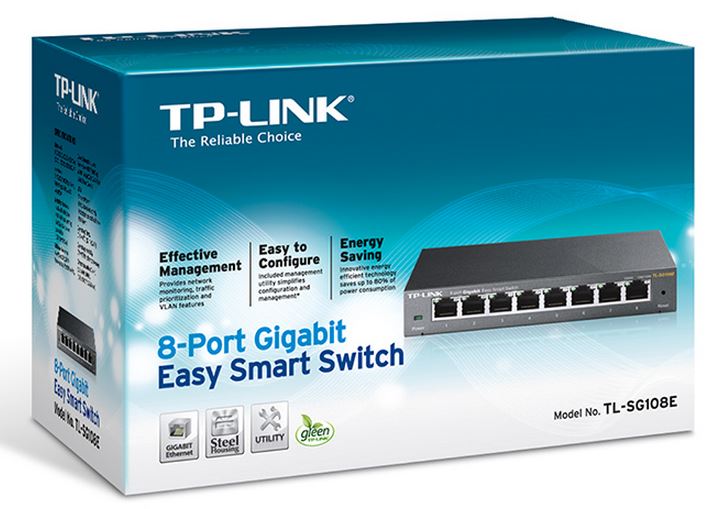

TP-Link 8-Port Gigabit Easy Smart Switch, Managed, L2, Gigabit Ethernet (10/100/1000)
TP-Link 8-Port Gigabit Easy Smart Switch. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1ab, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3x
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Network | |
| Networking standards | IEEE 802.1ab, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN |
| Number of VLANs | 32 |
| Data transmission | |
| Switching capacity | 16 |
| Forwarding rate | 11.9 |
| MAC address table | 4000 |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 15000 |
| Packet buffer memory | 1.5 |
| Security | |
| IGMP snooping | Yes |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
| Loop protection | Yes |
| Design | |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Performance | |
| Plug and Play | Yes |
| Power | |
| Power source | DC |
| Power supply included | Yes |
| Input current | 0.6 |
| Input voltage | 9 |
| Power consumption (max) | 3.55 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Heat dissipation | 12.12 |
| Weight & dimensions | |
| Width | 158 |
| Depth | 101 |
| Height | 25 |
| Packaging content | |
| Cables included | AC |
| User guide | Yes |
| Packaging data | |
| Package type | Box |
| Package width | 130 |
| Package depth | 191 |
| Package height | 92 |
| Package weight | 630 |
| Certificates | |
| Certification | FCC, CE, RoHS |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
