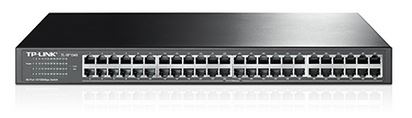

TP-Link 48-Port 10/100Mbps Rackmount Network Switch, Unmanaged, Fast Ethernet (10/100), Rack mounting, 1U
TP-Link 48-Port 10/100Mbps Rackmount Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 8000 entries, Switching capacity: 9.6 Gbit/s. Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Rack mounting, Form factor: 1U
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 48 |
| Network | |
| Networking standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Cable types supported | Cat3, Cat5e, Cat4, Cat5 |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100 |
| Auto-negotiation | Yes |
| Data transmission | |
| Switching capacity | 9.6 |
| Forwarding rate | 7.14 |
| MAC address table | 8000 |
| Store-and-forward | Yes |
| Protocols | |
| Supported network protocols | CSMA/CD, TCP/IP |
| Design | |
| Rack mounting | Yes |
| Stackable | No |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Performance | |
| Compatible operating systems | Microsoft Windows 8, 7,Vista, XP, MAC OS, NetWare, UNIX, Linux |
| Fanless | Yes |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| Power consumption (max) | 9.9 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Heat dissipation | 33.78 |
| Weight & dimensions | |
| Width | 440 |
| Depth | 260 |
| Height | 44 |
| Packaging content | |
| Cables included | AC |
| User guide | Yes |
| Rack mount kit | Yes |
| Packaging data | |
| Package type | Box |
| Package width | 250 |
| Package depth | 528 |
| Package height | 80 |
| Package weight | 2.62 |
| Sustainability | |
| Sustainability compliance | Yes |
| Certificates | |
| Compliance certificates | Federal Communications Commission (FCC), CE, RoHS |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
