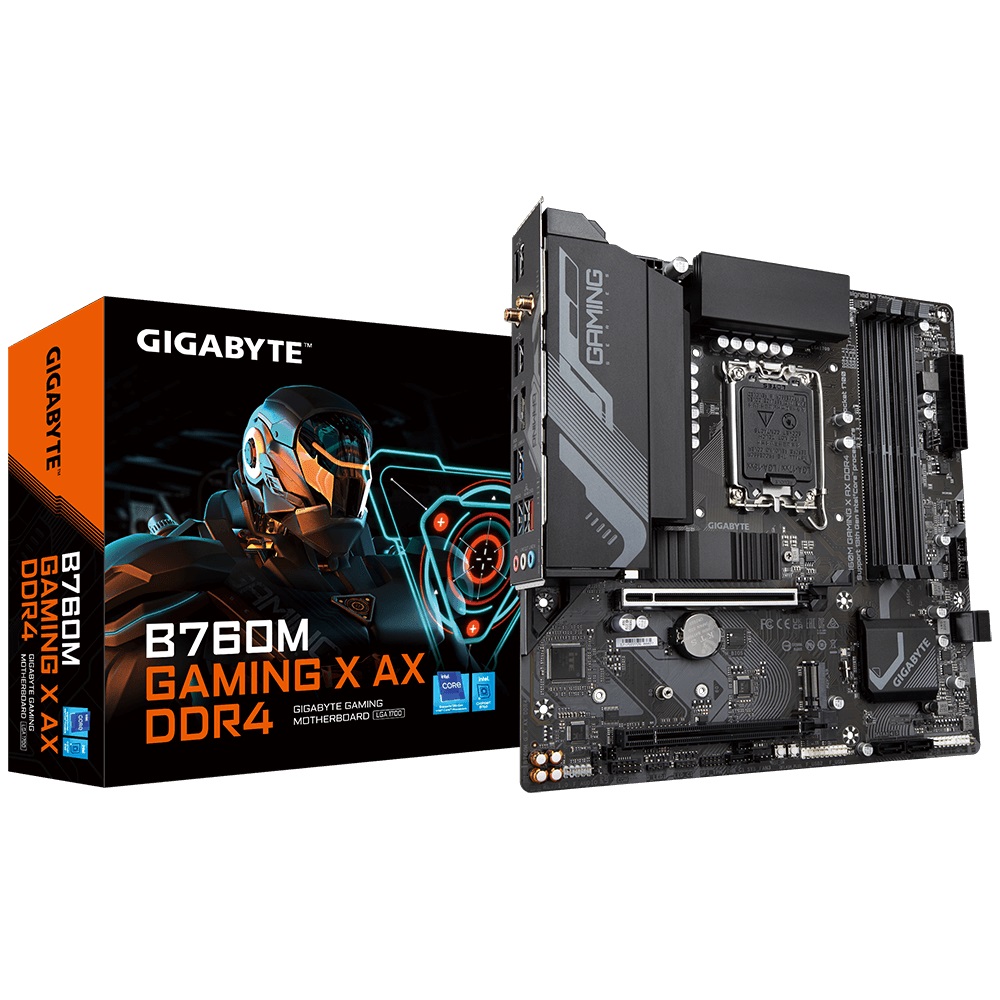

4719331851392 Gigabyte B760M Gaming X AX DDR4 Intel LGA 1700 m-ATX Motherboard, 4x DDR4 ~128GB, PCI-E x16, M.2, 4x SATA, 5x USB 3.2, 1x USB 2.0

4719331851392 Gigabyte B760M Gaming X AX DDR4 Intel LGA 1700 m-ATX Motherboard, 4x DDR4 ~128GB, PCI-E x16, M.2, 4x SATA, 5x USB 3.2, 1x USB 2.0

(0 review)

Product Code: 4719331851392

Gigabyte B760M Gaming X AX DDR4 Intel LGA 1700 m-ATX Motherboard, 4x DDR4 ~128GB, PCI-E x16, M.2, 4x SATA, 5x USB 3.2, 1x USB 2.0
Specification:
CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
L3 cache varies with CPU
Chipset
Intel® B760 Express Chipset
Memory
Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Onboard Graphics
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
Wireless Communication module
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Expansion Slots
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PC
Storage Interface
CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
PCIE

$ 339.00 $ 339.00 (Tax excluded)

  • Brand
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

GIGABYTE B760M GAMING X AX DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 8+1+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2x PCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, DDR4-SDRAM, 128 GB

GIGABYTE B760M GAMING X AX DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 8+1+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2x PCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A, USB Type-C

Processor
Processor manufacturerIntel
Processor socketLGA 1700
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Supported processor socketsLGA 1700
Memory
Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333
Supported memory clock speed (max)5333
Maximum internal memory128
Unbuffered memoryYes
Storage controllers
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Number of HDDs supported4
Number of storage drives supported6
RAID supportYes
RAID levels0, 1, 5, 10
Graphics
Parallel processing technology supportNot supported
Maximum resolution4096 x 2304
HDCPYes
DirectX version12.0
Internal I/O
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors4
S/PDIF out connectorYes
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors3
EPS power connector (8-pin)Yes
TPM connectorYes
Serial port headers1
Thunderbolt headers2
RGB LED pin headerYes
Rear panel I/O ports
USB 2.0 ports quantity5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
HDMI version2.0
DisplayPorts quantity1
Headphone outputs1
Line-inYes
Microphone inYes
WiFi-AP antenna jack2
USB connector typeUSB Type-A, USB Type-C
Network
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiYes
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
BluetoothYes
Bluetooth version5.3
Features
Motherboard chipsetIntel B760 Express
Audio output channels7.1
Product colourBrown
PC health monitoringFan, Temperature, Voltage, Water cooling
Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Power source typeATX
Windows operating systems supportedWindows 10, Windows 11
Expansion slots
PCI Express x16 (Gen 3.x) slots1
PCI Express x16 (Gen 4.x) slots1
Number of M.2 (M) slots2
1st M.2 largest key size2280
1st M.2 highest PCI Express generation4.0
2nd M.2 largest key size22110
2nd M.2 highest PCI Express generation4.0
BIOS
BIOS typeUEFI AMI
BIOS memory size256
ACPI version5.0
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7
Logistics data
Country of originChina
Products per shipping (inner) case1
Battery
Battery weight3
Lithium weight per battery0.0700
Number of battery cells1
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Packaging data
Package width270
Package depth268
Package height68
Package weight1.64
Weight & dimensions
Width244
Depth244
Height32
Packaging content
Batteries includedYes
Bundled softwareNorton Internet Security
Technical details
Warranty period3

Specifications

Brand Gigabyte
