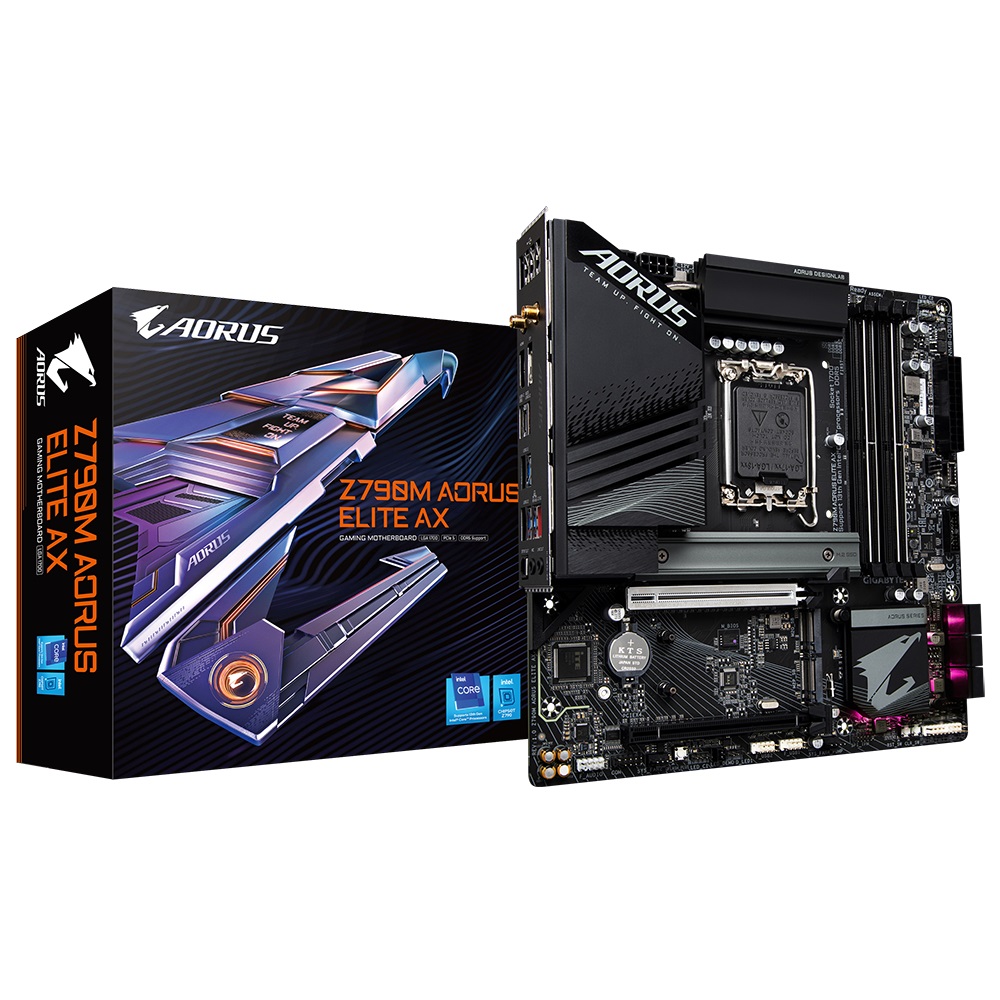

GIGABYTE Z790M AORUS ELITE AX, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, 256 GB, DDR5-SDRAM
GIGABYTE Z790M AORUS ELITE AX. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Parallel processing technology support: Crossfire, Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A, USB Type-C
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
| Maximum internal memory supported by processor | 256 |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 7600,7400,7200,4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000 |
| Supported memory clock speed (max) | 7600 |
| Maximum internal memory | 256 |
| Unbuffered memory | Yes |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Number of HDDs supported | 6 |
| Number of storage drives supported | 9 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
| Parallel processing technology support | Crossfire |
| Maximum resolution | 4096 x 2304 |
| HDCP | Yes |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 6 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |
| Thunderbolt headers | 2 |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Headphone outputs | 2 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| WiFi-AP antenna jack | 2 |
| USB connector type | USB Type-A, USB Type-C |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Features | |
| Motherboard chipset | Intel Z790 |
| Audio output channels | 7.1 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
| PCI Express x16 slots | 3 |
| Number of M.2 (M) slots | 3 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Clear CMOS button | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Weight & dimensions | |
| Width | 244 |
| Depth | 244 |
| Packaging content | |
| Cables included | SATA |
| Bundled software | Norton Internet Security |
Specifications
| Brand | Gigabyte |
