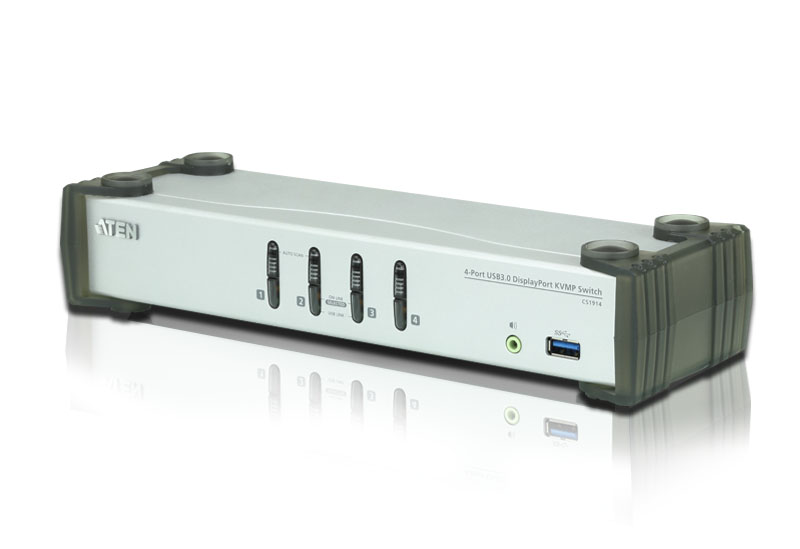

4719264645044 Aten Desktop KVMP Switch 4 Port Single Display DisplayPort w/ audio, Cables Included, 2x USB Port, Selection Via Front Panel

(0 review)

Product Code: 4719264645044

The ATEN CS1914 4-Port USB 3.0 DisplayPort KVMP™ Switch provides the latest innovations in desktop KVM switching technology to meet the increasing demand of higher video quality and file transfer rates on modern computers. The CS1914 provides superior resolutions up to 3840 x 2160 @ 30 Hz, a SuperSpeed USB 3.1 Gen 1 hub with 5 Gbps transfer rates and enhanced user-friendly operations.
As a KVM switch, the CS1914 gives users access to four DisplayPort computers from a single USB keyboard, USB mouse and monitor. To work with ease, the CS1914 provides three convenient switching methods – front panel pushbuttons, mouse and hotkeys for flexible and quick access to both computers.
ATEN’s unique independent switching feature allows the KVM control to focus on one computer while the USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer – such as a printer server, modem or splitter.
With its rich feature set, the CS1914 is designed to surpass all requirements for video post production, CAD design and applications that have a high demand for precise video clarity and large data transfer rates. The CS1914 allows you to share the audio from each computer and in HD quality when transmitted by the DisplayPort, to offer you an exciting sound experience.
*Note:
As is common with DisplayPort KVM switches, switching between KVM ports in an Extended Desktop setup may cause windows open on the extended desktop to be resized/repositioned back to a default configuration on the main display.



609.00 609.00 (Tax excluded)

  • Brand
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN 4-Port USB 3.1 Gen 1 DisplayPort 1.1 KVMP™ Switch with Speaker (KVM cables included), 3840 x 2160 pixels, 2.99 W, Black, Grey

ATEN 4-Port USB 3.1 Gen 1 DisplayPort 1.1 KVMP™ Switch with Speaker (KVM cables included). Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. Maximum resolution: 3840 x 2160 pixels, Scan interval: 1,99 s. Product colour: Black, Grey, Housing material: Metal, Plastic, LED indicators: Status, USB. Output voltage: 5 V, Power consumption (typical): 2.99 W. Compliance certificates: RoHS

Ports & interfaces
Number of computers controlled4
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDisplayPort
DisplayPorts quantity5
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity4
Console portsUSB A
Console USB ports quantity2
USB hubYes
USB connector typeUSB Type-A, USB Type-B
Audio connectionsYes
Headphone outputs6
DC-in jackYes
Performance
Maximum resolution3840 x 2160
Automatic switchingYes
Scan interval1,99
HDCPYes
Hot-Plug supportYes
Design
Rack mountingNo
Product colourBlack, Grey
Housing materialMetal, Plastic
LED indicatorsStatus, USB
Push buttonYes
Hot keysYes
Display
Built-in displayNo
Power
Output voltage5
Power consumption (typical)2.99
External power adapterYes
System requirements
Mac operating systems supportedYes
Sustainability
Compliance certificatesRoHS
Operational conditions
Operating temperature (T-T)0 - 50
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Weight & dimensions
Width88
Depth270
Height55.5
Weight1.97
Packaging data
Package width98
Package depth325
Package height210
Package weight2.46
Packaging content
Cables includedAudio (3.5mm), DisplayPort, USB
ManualYes
AC adapter includedYes
Logistics data
Master (outer) case net weight9.85
Harmonized System (HS) code85176200
Master (outer) case width342
Master (outer) case length512
Master (outer) case height232
Master (outer) case gross weight12.8
Products per master (outer) case5

Specifications

Brand Aten
