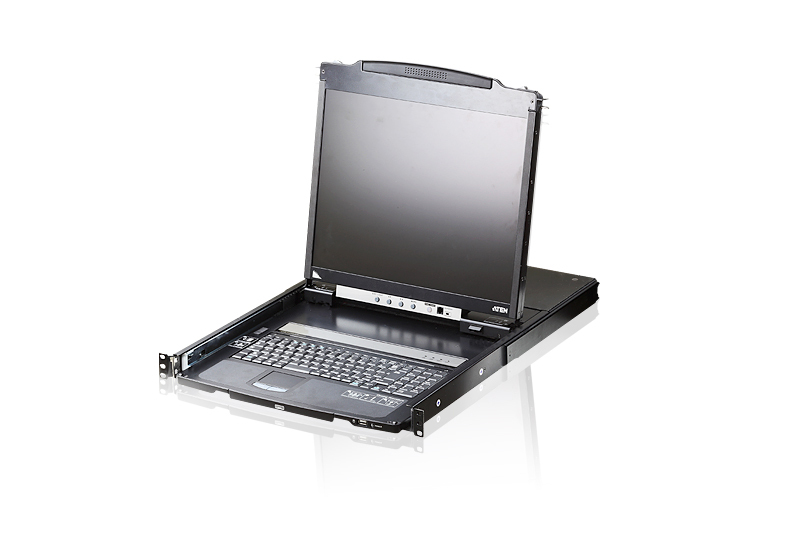

The CL5800 is a LCD KVM console featuring an integrated 19" LED-backlit LCD panel, a full keyboard, and a touch pad in a 1U rack-mountable sliding housing.
The CL5800's LCD and keyboard/touch pad modules slide independently of each other. To maximize space in your data center, the keyboard/touch pad module slides back to "hide away" when not in use, while the thin profile LCD monitor rotates back - flush against the rack - allowing convenient monitoring of computer activity.
For added convenience, ports for an external PS/2 or USB keyboard and mouse as well as a monitor are provided on the rear panel.
Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated KVM console with a 19" LED-backlit LCD monitor in a dual rail housing with top and bottom clearance for smooth operation in a 1U high system rack
Standard rack mount kit included
Supports an external console* with either PS/2 or USB connectors
Dual interface - Supports computers and KVM switches with PS/2 or USB keyboards and mice
Additional hot-pluggable USB mouse port on front panel (also functions as USB peripheral port)
Embedded power supply
High video resolution:
• Up to 1280 x 1024 @75Hz
• Supports DDC, DDC2, DDC2B
• DDC emulation of the LCD monitor
• Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor
Standard 105-key keyboard; Sun keyboard emulation
Dual rail design allows LCD monitor and keyboard/touch pad modules to operate independently
Firmware upgradeable
Supports Microsoft Intellimouse (5 keys)
Supports Logitech and Microsoft wireless mice
Optional rack mount kits available including easy installation options
Console lock - enables the console drawer to remain securely locked away in position when not in use
$ 1,499.00
1499.0
AUD
$ 1,499.00
Not Available For Sale
-
