4719264641602 Aten Desktop KVM Switch 16 Port Single Display HDMI w/ audio, 2x Custom KVM Cables Included Only

(0 review)

Product Code: 4719264641602

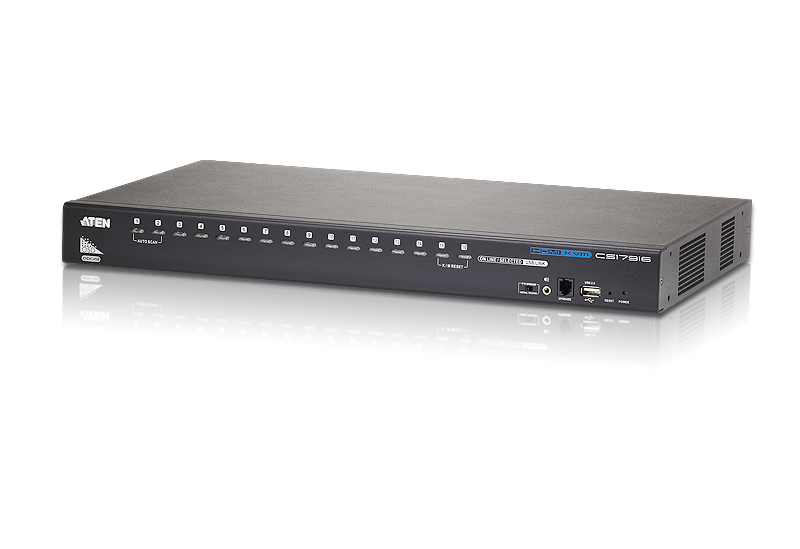

Aten Desktop KVM Switch 16 Port Single Display HDMI w/ audio, 2x Custom KVM Cables Included Only
The CS17916 16-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 16 HDMI computers from a single USB keyboard, USB mouse, and monitor console.
The CS17916 can be cascaded up to two levels – to control up to 256 computers – all from a single console.
In addition the CS17916 features multi-display functionality, which enables the use of standard USB cables to stack up to eight switches in a multi-display installation where each computer is fitted with multiple video cards. It allows you to contrast, analyse and monitor video output in convenient ways, substantially simplifying the working environment.
Furthermore, the CS17916 comes with ATEN’s on-screen display (OSD) function, which can access any computer connected to the installation, it also offers OSD configuration backup/restore to save/back up the OSD settings and restore them as needed.
The CS17916 provides multimedia keyboard support and is audio enabled. You can listen to the audio output of each computer on two sets of speakers (on a one at- a-time basis).




1,149.00 1,149.00 (Tax excluded)

  • Brand
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN 16-Port USB - HDMI KVM Switch with USB Peripheral port, 1920 x 1200 pixels, WUXGA, 8.66 W, Black

ATEN 16-Port USB - HDMI KVM Switch with USB Peripheral port. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: DC, Input voltage: 5 V, Power consumption (typical): 8.66 W. Width: 432.4 mm, Depth: 257.2 mm, Height: 44 mm

Ports & interfaces
Number of computers controlled16
Keyboard port typeUSB
Mouse port typeUSB
Video port typeHDMI
HDMI ports quantity16
USB 2.0 Type-B ports quantity16
Console ports3.5mm headphone, 3.5mm mic, HDMI, USB A
USB hubYes
USB 2.0 Type-A hub ports quantity2
Audio connectionsYes
Headphone outputs17
Number of microphone inputs1
DC-in jackYes
Performance
HD typeWUXGA
Maximum resolution1920 x 1200
Video bandwidth60
Scan interval1,5,255
Design
Product colourBlack
Housing materialMetal
LED indicatorsYes
Display
Built-in displayNo
Power
Power sourceDC
Input voltage5
Power consumption (typical)8.66
Operational conditions
Operating temperature (T-T)0 - 50
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Storage relative humidity (H-H)0 - 80
Weight & dimensions
Width432.4
Depth257.2
Height44
Weight5.1
Packaging data
Package width133
Package depth499
Package height324
Package weight5.68
Packaging content
Quick installation guideYes
ManualYes
Logistics data
Master (outer) case net weight15.3
Harmonized System (HS) code85176200
Master (outer) case width427
Master (outer) case length519
Master (outer) case height348
Master (outer) case gross weight18.1
Products per master (outer) case3

Specifications

Brand Aten
