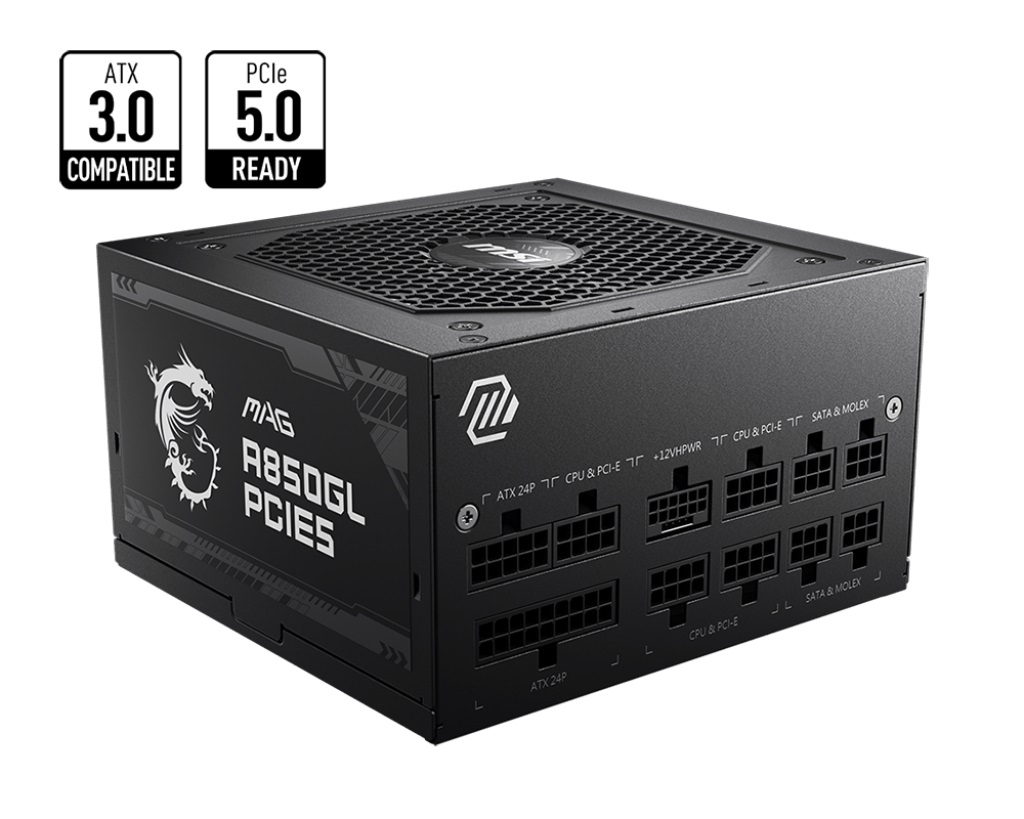

4711377084253 MSI MAG A850GL PCIE5 850W Up to 90% (80 Plus Gold) ATX Power Supply Unit, PFC, 100~240 VAC, 850W, 47-63Hz, PCI-E, SATA, FDD

4711377084253 MSI MAG A850GL PCIE5 850W Up to 90% (80 Plus Gold) ATX Power Supply Unit, PFC, 100~240 VAC, 850W, 47-63Hz, PCI-E, SATA, FDD

(0 review)

Product Code: 4711377084253

MSI MAG A850GL PCIE5 850W Up to 90% (80 Plus Gold) ATX Power Supply Unit, PFC, 100~240 VAC, 850W, 47-63Hz, PCI-E, SATA, FDD
FEATURES:
ATX 3.0 compatible, native PCIe 5.0 connector
Supports NVIDIA® GeForce RTX™ 40 Series graphics cards
Full modular design,Flat cables
80 Plus Gold certified for high efficiency
Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
120mm Fluid Dynamic Bearing Fan
LLC Full Bridge Topology with DC-DC module design
SPECIFICATIONS:
EFFICIENCY RATING 80 PLUS Gold (up to 90%)
MODULAR Yes (full modular)
FAN SIZE 120 mm
FAN BEARING Fluid Dynamic Bearing
DIMENSIONS (DXWXH) 140 x 150 x 86 mm
PFC TYPE Active PFC
INPUT VOLTAGE RANGE 100~240 VAC
POWER WATT 850W
POWER EXCURSION 1700W (*up to 200% of the PSU's rated power for 100μs)
INPUT FREQUENCY RANGE 47-63Hz
PROTECTION OCP / OVP / OPP / OTP / SCP / UVP
ATX (24 PIN) 1
EPS (4+4 PIN) 2
PCI-E 5.0 (16 PIN) 1 (600W)
PCI-E (6+2 PIN) 4
SATA (15 PIN) 8
MOLEX (4 PIN) 4
FDD (4 PIN) 1

$ 180.00 $ 180.00 (Tax excluded)

  • Brand
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

MSI MAG A850GL PCIE5, 850 W, 100 - 240 V, 47 - 63 Hz, 8 A, 4 A, Active

MSI MAG A850GL PCIE5. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm

Power
Total power850
AC input voltage100 - 240
AC input frequency47 - 63
Maximum input current (@110V)8
Maximum input current (@220V)4
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)110
Combined power (+12V)846
Combined power (+5V)110
Combined power (-12V)3.6
Combined power (+5Vsb)12.5
Max output current (+3.3V)20
Max output current (+12V)70.5
Max output current (+5V)20
Max output current (-12V)0.3
Max output current (+5Vsb)2.5
Efficiency90
Power protection featuresOver current, Over power, Over voltage, Overheating, Short circuit
Ports & interfaces
Motherboard power connector20+4 pin ATX
Motherboard power cable length60
Number of SATA power connectors8
Peripheral (Molex) power connectors (4-pin)4
EPS power connector (8-pin)No
EPS power connector (4+4 pin)Yes
PCI Express power connectors (6+2 pin)4
CPU power connector (4+4 pin)Yes
ATX Power connector (24-pin)No
ATX power connector (20+4 pin)No
Cabling typeFully-Modular
Performance
80 PLUS certification80 PLUS Gold
PurposePC
Power supply unit (PSU) form factorATX
Design
Product colourBlack
Cooling typeActive
Fan diameter12
Number of fans1
IlluminationNo
On/off switchYes
Weight & dimensions
Width150
Depth140
Height86
Packaging data
Package typeBox
Logistics data
Harmonized System (HS) code84733020

Specifications

Brand MSI
