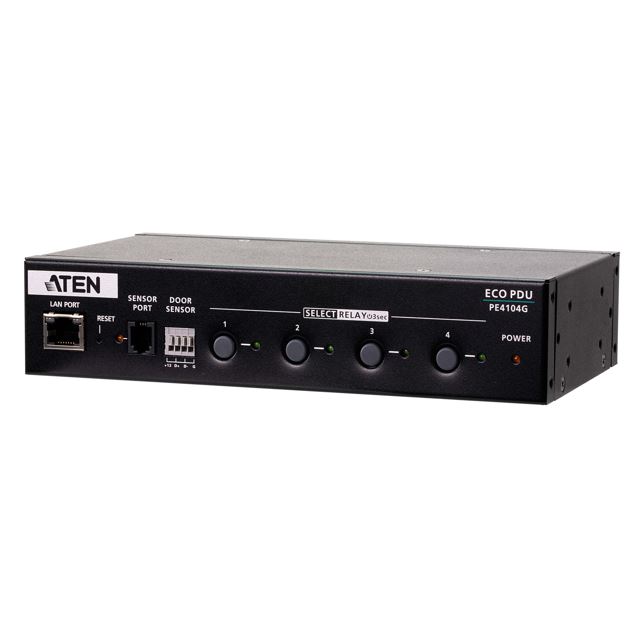

4710469340086 Aten 4 Port 1U 10A Smart PDU with outlet control, 4xC13 Outlets, 100 - 240 VAC, Two-level password security, Remote authentication support: RADIUS

(0 review)

Product Code: 4710469340086

Engineered to be an intelligent power distribution solution, the PE4104G IP Control Box ships with 4 power outlets in an IEC socket configuration. It provides secure, centralized, intelligent, and remote power management of data center IT equipment to minimize the operating cost.
The PE4104G features the remote power control function, allowing you to control devices attached to the PDU at the PDU device level from practically any location via a TCP/IP connection. The power sequence design eliminates the risks for a power inrush to guarantee reliable operation and protects the overall system health. With the support for eco DC software, it provides an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to configure a PDU device and reboot the device in case any equipment lock-up occurs. The administrators can switch on/off or set a delay time for each power outlet or individual power outlets group whenever, wherever.
The PE4104G boasts a slim, compact form factor and supports desk mount as well as rack mount, ensuring easy installation in confined spaces. It is a smart power control box tailored for hospitality or retail applications, such as digital signages and video walls, for edge computing devices, including routers, servers and cameras, or for any data center environments where there is no need to keep the servers powered on at all times.





639.00 639.00 (Tax excluded)

  • Brand
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN 4-Outlet IP Control Box, Basic, 1U, Black, 4 AC outlet(s), C13 coupler, IEC 320

ATEN 4-Outlet IP Control Box. PDU types: Basic, Rack capacity: 1U, Product colour: Black. AC outlets quantity: 4 AC outlet(s), AC outlet types: C13 coupler, Power plug: IEC 320. Cable length: 3 m. Nominal input voltage: 100-240 V, Maximum current: 10 A. Compliance certificates: CE, Certification: CE-EMC CE-LVD

Design
PDU typesBasic
Rack capacity1U
Product colourBlack
Ports & interfaces
AC outlets quantity4
Power plugIEC 320
AC outlet typesC13 coupler
Ethernet LAN (RJ-45) ports1
Features
Reset buttonYes
LED indicatorsYes
Cable length3
Power
Nominal input voltage100-240
Maximum current10
Certificates
Compliance certificatesCE
CertificationCE-EMC CE-LVD
Operational conditions
Operating temperature (T-T)0 - 50
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Weight & dimensions
Width200
Depth115
Height44
Weight1.29
Packaging content
Cables includedAC
ManualYes
Rack mount kitYes
Packaging data
Package weight1.49
Package width100
Package depth283
Package height173
Logistics data
Master (outer) case net weight6.45
Master (outer) case width292
Master (outer) case length517
Master (outer) case height194
Master (outer) case gross weight8.04
Products per master (outer) case5

Specifications

Brand Aten
