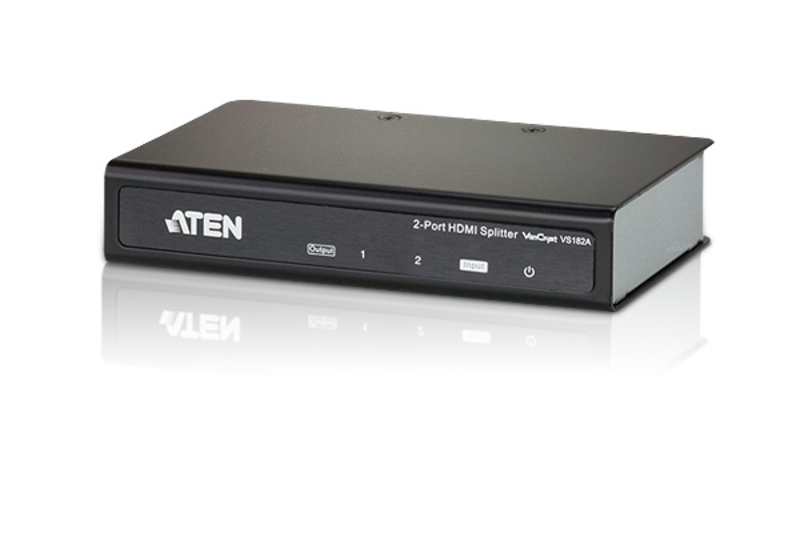

ATEN 2-Port HDMI Audio/Video Splitter 4Kx2K, HDMI, 2x HDMI, 4096 x 2160 pixels, Black, Metal, 4K Ultra HD
ATEN 2-Port HDMI Audio/Video Splitter 4Kx2K. Video port type: HDMI, Video out: 2x HDMI. Maximum resolution: 4096 x 2160 pixels, Product colour: Black, Housing material: Metal. AC input voltage: 5 V, Power consumption (typical): 3.12 W. Width: 80 mm, Depth: 125 mm, Height: 25 mm. Quantity per pack: 1 pc(s), Package width: 59 mm, Package depth: 239 mm
| Ports & interfaces | |
|---|---|
| Video port type | HDMI |
| Video out | 2x HDMI |
| Video ports quantity | 3 |
| DC-in jack | Yes |
| Features | |
| Product colour | Black |
| Housing material | Metal |
| Maximum resolution | 4096 x 2160 |
| HD type | 4K Ultra HD |
| 3D | Yes |
| Maximum operating distance | 15 |
| Maximum refresh rate | 60 |
| Bandwidth | 340 |
| HDCP version | 1.4 |
| HDCP | Yes |
| Plug and Play | Yes |
| LED indicators | Yes |
| Dolby technologies | DTS-HD Master Audio, Dolby TrueHD |
| Power | |
| AC input voltage | 5 |
| Power consumption (typical) | 3.12 |
| Weight & dimensions | |
| Width | 80 |
| Depth | 125 |
| Height | 25 |
| Weight | 504 |
| Packaging data | |
| Quantity per pack | 1 |
| Package width | 59 |
| Package depth | 239 |
| Package height | 160 |
| Package weight | 642 |
| Packaging content | |
| Manual | Yes |
| Cables included | HDMI |
| AC adapter included | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 0 - 80 |
| Storage relative humidity (H-H) | 0 - 80 |
| Logistics data | |
| Master (outer) case net weight | 10.1 |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 315 |
| Master (outer) case length | 490 |
| Master (outer) case height | 338 |
| Master (outer) case gross weight | 13.3 |
| Products per master (outer) case | 20 |
Specifications
| Brand | Aten |
