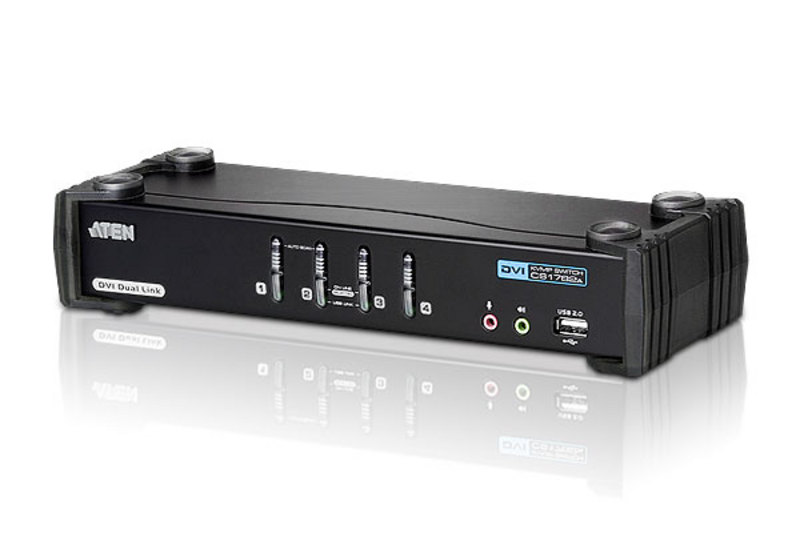

4710423777095 Aten Desktop KVMP Switch 4 Port Single Display DVI w/ 7.1 audio, 4x Custom KVM Cables Included, 2x USB Port, Selection Via Front Panel

(0 review)

Product Code: 4710423777095

Aten Desktop KVMP Switch 4 Port Single Display DVI w/ 7.1 audio, 4x Custom KVM Cables Included, 2x USB Port, Selection Via Front Panel
The CS1784A USB DVI Dual Link KVMP™ Switch charts a revolutionary direction in KVM switch functionality. It combines the capabilities of a 4-port KVM switch with a 2-Port USB hub, while providing a DVI monitor interface and audio support. Moreover it carries advanced features, such as nVidia 3D Vision ready 120Hz 3D display support, gaming keyboard compatibility and port selection/switching using a mouse, aimed at giving you flexibility, convenience and enjoyment.
4-port DVI KVMP Switch with USB 2.0 and 2.1 Surround Sound Audio
One USB console controls four computers and two additional USB devices
2-port built in USB 2.0 hub fully compliant with the USB 2.0 specification
Full bass response for high quality 2.1 channel surround sound systems
Computer selection via front panel pushbuttons, hotkeys, and mouse NEW!
Multiplatform support – Windows, Linux, Mac, and Sun*
Independent switching of KVM, USB, and Audio focus
DVI digital and analog monitor support – fully compliant with the DVI specifications
Superior video quality: 1920 x 1200 @ 60Hz (Single Link); 2560 x 1600 @ 60Hz (Dual Link)
nVidia 3D Vision Ready: Works with 120Hz LCD monitors and active shutter glasses to create a 3D environment with maximum resolution of up to 1920 x 1080
HDCP compatible
Support widescreen resolutions
Video DynaSync™ – Exclusive ATEN technology that eliminates boot-up display problems and optimizes resolution when switching between ports




419.00 419.00 (Tax excluded)

  • Brand
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

ATEN 4-Port USB DVI Dual Link KVM Switch with Audio & USB 2.0 Hub (KVM cables included), 2560 x 1600 pixels, WQXGA, 5.91 W, Black

ATEN 4-Port USB DVI Dual Link KVM Switch with Audio & USB 2.0 Hub (KVM cables included). Keyboard port type: USB, Mouse port type: USB, Video port type: DVI-I. HD type: WQXGA, Maximum resolution: 2560 x 1600 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: DC, Input voltage: 5.3 V, Power consumption (typical): 5.91 W. Width: 270 mm, Depth: 88 mm, Height: 55.5 mm

Ports & interfaces
Number of computers controlled4
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDVI-I
DVI-I ports quantity4
USB 2.0 Type-B ports quantity4
Console ports3.5mm headphone, 3.5mm mic, DVI-I, USB A
Console USB ports quantity2
USB hubYes
USB 2.0 Type-A hub ports quantity2
USB connector typeUSB Type-A, USB Type-B
Audio connectionsYes
Headphone outputs6
Number of microphone inputs6
DC-in jackYes
Performance
HD typeWQXGA
Maximum resolution2560 x 1600
Video bandwidth60
Scan interval1,5,99
Design
Product colourBlack
Housing materialMetal
LED indicatorsYes
Push buttonYes
Hot keysYes
Display
Built-in displayNo
Power
Power sourceDC
Input voltage5.3
Power consumption (typical)5.91
Operational conditions
Operating temperature (T-T)0 - 50
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Storage relative humidity (H-H)0 - 80
Weight & dimensions
Width270
Depth88
Height55.5
Weight2.32
Packaging data
Package width98
Package depth325
Package height210
Package weight2.56
Packaging content
Quick installation guideYes
ManualYes
Logistics data
Master (outer) case net weight11.6
Harmonized System (HS) code85176200
Master (outer) case width342
Master (outer) case length512
Master (outer) case height232
Master (outer) case gross weight13.5
Products per master (outer) case5

Specifications

Brand Aten
