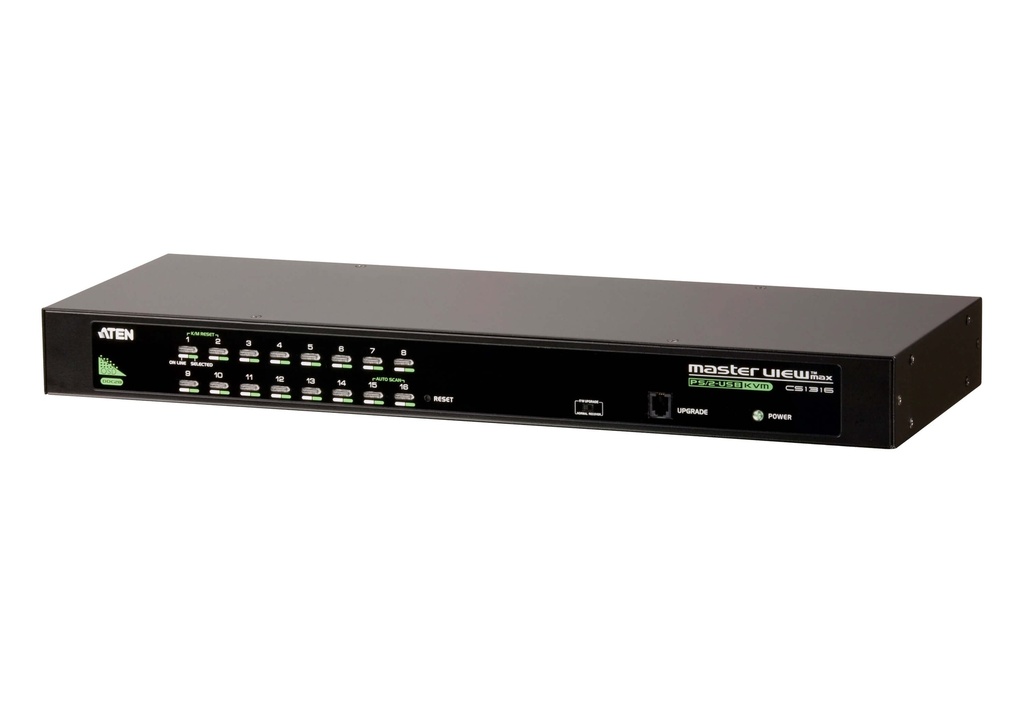

ATEN 16-Port USB - PS/2 VGA KVM Switch, 2048 x 1536 pixels, QXGA, Rack mounting, 6.5 W, 1U, Black
ATEN 16-Port USB - PS/2 VGA KVM Switch. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels, Scan interval: 1,255 s. Product colour: Black, Rack capacity: 1U, Housing material: Metal. Power source: DC, Input voltage: 5.3 V, Power consumption (typical): 6.5 W. Width: 437.2 mm, Depth: 161.3 mm, Height: 44 mm
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 256 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
| Console ports | VGA (D-Sub) |
| Performance | |
| HD type | QXGA |
| Maximum resolution | 2048 x 1536 |
| Scan interval | 1,255 |
| DDC2B support | Yes |
| Hot-Plug support | Yes |
| Firmware upgradeable | Yes |
| Design | |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Metal |
| Cascadable | Yes |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | Yes |
| Power | |
| Power source | DC |
| Input voltage | 5.3 |
| Power consumption (typical) | 6.5 |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 0 - 80 |
| Weight & dimensions | |
| Width | 437.2 |
| Depth | 161.3 |
| Height | 44 |
| Weight | 2.5 |
| Packaging data | |
| Package width | 116 |
| Package depth | 540 |
| Package height | 233 |
| Package weight | 2.87 |
| Packaging content | |
| Cables included | KVM |
| Quick installation guide | Yes |
| Manual | Yes |
| AC adapter included | Yes |
| Logistics data | |
| Master (outer) case net weight | 7.5 |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 375 |
| Master (outer) case length | 565 |
| Master (outer) case height | 258 |
| Master (outer) case gross weight | 9.27 |
| Products per master (outer) case | 3 |
Specifications
| Brand | Aten |
