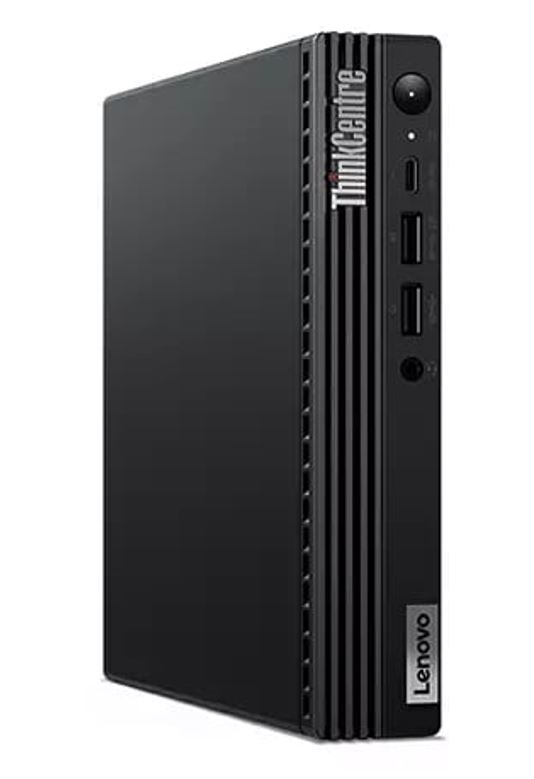

Lenovo ThinkCentre M80q Gen 3, 2 GHz, Intel® Core™ i5, i5-12500T, 8 GB, 256 GB, Windows 11 Pro
Lenovo ThinkCentre M80q Gen 3. Processor frequency: 2 GHz, Processor family: Intel® Core™ i5, Processor model: i5-12500T. Internal memory: 8 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 4800 MHz. Total storage capacity: 256 GB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics 770. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 90 W. Chassis type: Mini PC. Product type: Mini PC. Product colour: Black
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 12th gen Intel® Core™ i5 |
| Processor model | i5-12500T |
| Processor cores | 6 |
| Processor boost frequency | 4.4 |
| Processor frequency | 2 |
| Processor cache | 18 |
| Processor cache type | Smart Cache |
| Bus type | DMI4 |
| Memory | |
| Internal memory | 8 |
| Maximum internal memory | 64 |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 8 |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 4800 |
| Memory channels | Dual-channel |
| Storage | |
| Total storage capacity | 256 |
| Storage media | SSD |
| Optical drive type | No |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 256 |
| Number of SSDs installed | 1 |
| SSD capacity | 256 |
| SSD interface | NVMe, PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | No |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| Wake-on-LAN ready | Yes |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Design | |
| Chassis type | Mini PC |
| Colour name | Black |
| Volume | 1 |
| Placement supported | Horizontal/Vertical |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Viewing window | No |
| Performance | |
| Motherboard chipset | Intel Q670 |
| Audio chip | Realtek ALC256-VB |
| Audio system | High Definition Audio |
| Built-in speaker(s) | Yes |
| Number of speakers | 1 |
| Password protection | Yes |
| Password protection type | HDD, Power on, Supervisor |
| Trusted Platform Module (TPM) | Yes |
| Product type | Mini PC |
| Software | |
| Operating system architecture | 64-bit |
| Operating system language | English |
| Recovery operating system | Windows 10 Pro |
| Operating system installed | Windows 11 Pro |
| Processor special features | |
| Intel 64 | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Embedded options available | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Idle States | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Power | |
| Power supply | 90 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 |
| Storage temperature (T-T) | -40 - 60 |
| Operating relative humidity (H-H) | 20 - 80 |
| Storage relative humidity (H-H) | 10 - 90 |
| Operating altitude | 0 - 3048 |
| Non-operating altitude | 0 - 12192 |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | MIL-STD-810H, ErP Lot 3 |
| Sustainability | |
| Sustainability certificates | ENERGY STAR, EPEAT Gold, TCO |
| Weight & dimensions | |
| Width | 179 |
| Depth | 182.9 |
| Height | 36.5 |
| Weight | 1.25 |
| Packaging content | |
| Mouse included | Yes |
| Mouse connectivity | Wired |
| Keyboard included | Yes |
| Keyboard connectivity | Wired |
| Display | |
| Display included | No |
Specifications
| Brand | Lenovo |
