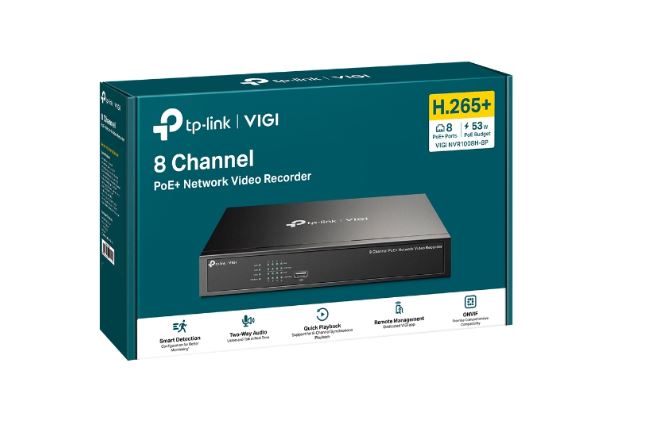

TP-Link VIGI NVR1008H-8P, 8 channels, 3840 x 2160 pixels, 8 channels, 720p, 1080p, 1920 x 1080, 1680 x 1050, 1440 x 900, 1280 x 1024, 102 4x 768, 1280 x 720, H.264, H.264+, H.265, H.265+
TP-Link VIGI NVR1008H-8P. Video input channels: 8 channels, Maximum resolution: 3840 x 2160 pixels, Number of simultaneously playbacked channels: 8 channels. Maximum storage capacity: 10 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at, Supported network protocols: TCP/IP, DHCP, DNS, NTP, UPnP. LED indicators: HDD, LAN, PoE, System, Product colour: Black. Power consumption (max): 12.94 W, Output current: 1.31 A, Output voltage: 53.5 V
| Performance | |
|---|---|
| Video input channels | 8 |
| Number of simultaneously playbacked channels | 8 |
| Video recording modes | 720p, 1080p |
| Maximum resolution | 3840 x 2160 |
| Supported resolutions | 1920 x 1080, 1680 x 1050, 1440 x 900, 1280 x 1024, 102 4x 768, 1280 x 720 |
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Input bandwidth | 80 |
| Output bandwidth | 60 |
| Audio system | 2-way |
| Hard drive | |
| HDD capacity | 0 |
| Number of HDDs supported | 1 |
| Maximum storage capacity | 10 |
| HDD interface | SATA |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100 |
| Power over Ethernet (PoE) ports quantity | 8 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| DC-in jack | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Supported network protocols | TCP/IP, DHCP, DNS, NTP, UPnP |
| Features | |
| Rack mounting | Yes |
| LED indicators | HDD, LAN, PoE, System |
| Product colour | Black |
| Power | |
| Power consumption (max) | 12.94 |
| Output current | 1.31 |
| Output voltage | 53.5 |
| Total Power over Ethernet (PoE) budget | 53 |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 55 |
| Weight & dimensions | |
| Width | 294 |
| Depth | 180 |
| Height | 44 |
| Package type | Box |
| Packaging content | |
| AC adapter included | Yes |
| Quick installation guide | Yes |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
