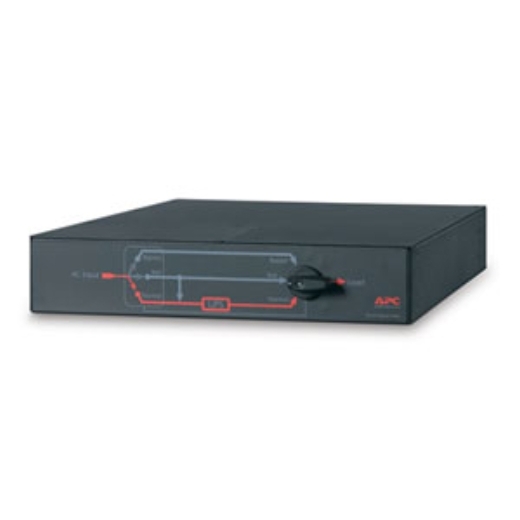

APC Service Bypass Panel- 230V; 32A; MBB; Hardwire input; (4) IEC-320 C19 Output
Main Input Voltage 230 V
Main Output Voltage 230 V
Number of rack unit 2U
Provided equipment- Installation guide, Rack mounting brackets, User manual
Network frequency 50/60 Hz
Number of input connectors 1 hard wire 3-wire (1P + N + E)
Max line current 32 A
Input current limits 32 A
Load capacity 7680 VA
Power factor 0…1
Max current draw 32 A
Number of power socket outlets 4 IEC 60320 C19
Protection type Circuit breaker
Efficiency 99 %
Product certifications CSA, GOST
Standards EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Ambient air temperature for operation -20…50 °C
Relative humidity 0…95 %
Operating altitude 0...15000 ft
Ambient air temperature for storage -40…65 °C
Storage Relative Humidity 0…95 %
Storage altitude 0.00…15240.00 m
Mounting mode- Rack mounted
$ 2,500.00
2500.0
AUD
$ 2,500.00
Not Available For Sale
-
