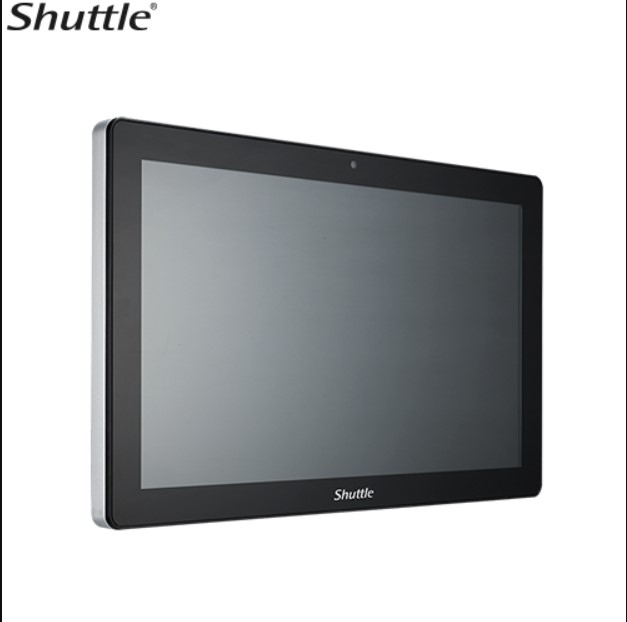

Shuttle P21WL01-i3 21.5 inch Industrial Touch Panel Fanless PC, Intel i3-8145UE, 1x Intel® Gigabit Ethernet, 1x Intel® GbE LAN, 19V/4.74A 90W external adapter, 1 x HDMI, 1 x DVI-I, VESA Mount
Shuttle P21WL01 is a high-value, sturdy Panel PC equipped with a 21.5-inch Full HD TFT LED with true-Flat PCAP touch. The unit is designed with Intel® Whiskey Lake-U technology to provide high-performance computing in a fan-less system for high durability and functionality.n addition to default I/O interfaces, to further enhance system flexibility as well as to increase the versatility in application, The P21WL01 allows users to select different I/O ports Combination for diverse industrial applications.The P21WL01 is suitable to deploy into factory automation, vending-machine, infotainment in a public building, hospitality retail, transportation, and so on.
8th Gen. Intel® Whiskey Lake-U Processors
Intel® CoreTM i3-8145UE Processor
Memory 2 x 260 pin SO-DIMM up to 64GB
Dual Channel DDR4 2400MHz
Display 21.5” 1920x1080 FHD TFT LCD with 10-Point Capacitive Multi-Touch
Viewing Angle (H/V°) 89 (left), 89 (right), 89 (up), 89 (down)
Brightness 500nits
Contrast 1000 :1
Backlight Lifetime 30,000 hrs
Display Interface Supports two independent displays
1 x HDMI 1.4b (4K / 30fps)
1 x DVI-I: 1920 x 1080@60Hz (optional daughter board)
Storage 1 x M.2 2280, M key (PCIe NVMe / SATA)
1 x 2.5” SSD SATA 3.0 drive bay (Swappable, compatible 7mm)
Audio Codec Realtek ALC662 2-channel
Ethernet 1x Intel® Gigabit Ethernet
1x Intel® GbE LAN or 2.5 GbE (optional)
(Support Wake on Lan)
WLAN 1 x M.2 2230, M key with Realtek RTL8821CE 802.11a/b/g/n
4 x USB3.2 Gen 1 (Type A)
Power 9-36V DC-in (Optional wide range board)
OS Support Windows 10/11 64bit Linux 64bit
IP Rating IP65 Front Panel Protection
Operating Temperature 0 ~ 40°C
Storage Temperature -20°C ~ 60°C
Relative Humidity 0-90%
EMC CE, FCC, VCCI, CEC, BSMI
Safety cTUVus, CB, BSMI
RF US, EU, Taiwan
