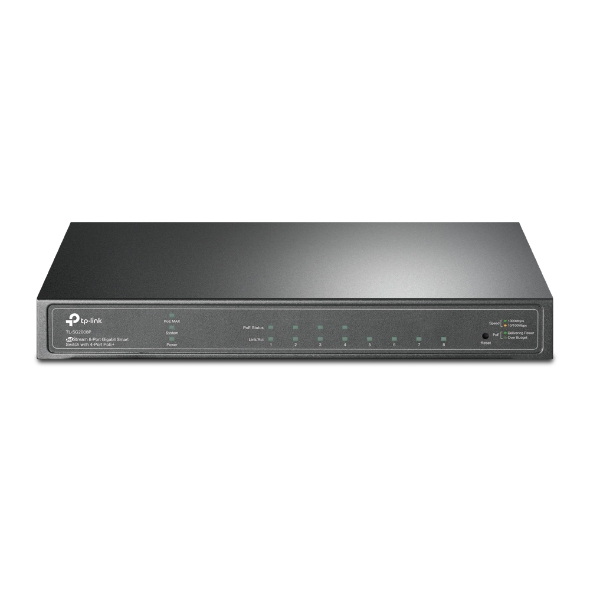

TP-Link Omada 8-Port Gigabit Smart Switch with 4-Port PoE+, Managed, L2/L2+, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting
TP-Link Omada 8-Port Gigabit Smart Switch with 4-Port PoE+. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Rack mounting
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| System event log | Yes |
| MIB support | MIB II (RFC1213) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support TP-Link private MIBs RMON MIB(RFC1757, rmon 1,2,3,9) |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Data transmission | |
| Switching capacity | 16 |
| Forwarding rate | 11.9 |
| MAC address table | 8000 |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 4.1 |
| Security | |
| DHCP features | DHCP client, DHCP relay, DHCP snooping, DHCPv6 server, DHCPv6 snooping |
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS |
| MAC address filtering | Yes |
| Authentication | MAC-based authentication, Web-based authentication |
| Authentication type | RADIUS |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMPv1/v2c/v3 |
| IPv4 & IPv6 features | IPv6 Telnet, IPv6 ping, IPv6 tracert |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Performance | |
| Fanless | Yes |
| Power | |
| Power supply included | Yes |
| Power consumption (max) | 77.3 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Heat dissipation | 263.6 |
| Weight & dimensions | |
| Width | 209 |
| Depth | 126 |
| Height | 26 |
| Packaging content | |
| Manual | Yes |
| Packaging data | |
| Package type | Box |
| Certificates | |
| Certification | CE, FCC, RoHS |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
