Product Code: KE8952R-AX

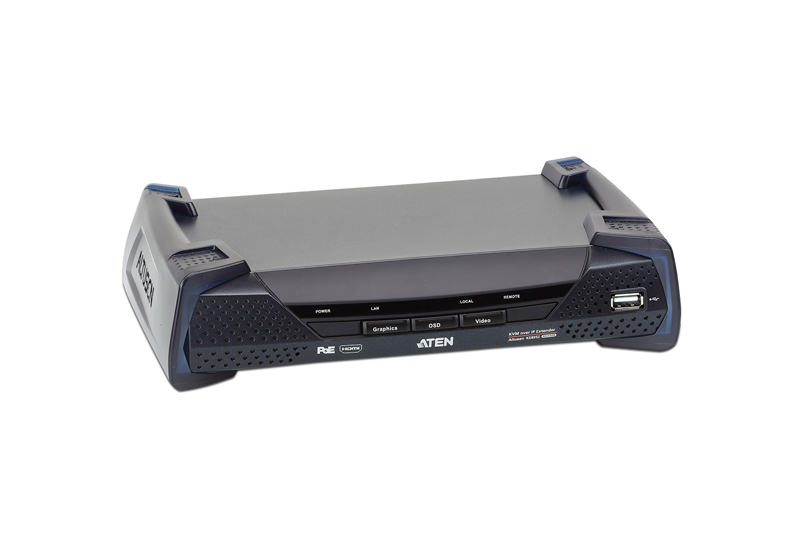

Aten 4K HDMI Single Display KVM over IP Receiver with Power over Ethernet, power adapter not included
Connectors
USB Port 2 x USB Type A Female (White)
Console Ports 2 x USB Type A Female (White)
1 x HDMI Female (Black)
1 x Mini Stereo Jack (Green)
1 x Mini Stereo Jack (Pink)
1 x DB-9 Male (Black)
KVM Ports N/A
Power 1 x DC Jack (Black)
LAN Ports 1 x RJ-45 (Black)
1 x SFP Slot
Switches
OSD 1 x Pushbutton
Video 1 x Pushbutton
Graphics 1 x Pushbutton
Reset 1 x Semi-recessed Pushbutton
LEDs
10/100/1000 Mbps 1 (10: Orange / 100: Orange Green / 1000: Green)
Power 1 (Blue)
Local 1 (Green)
Remote 1 (Green)
Emulation
Keyboard / Mouse USB
Power Consumption DC48V:7.06W:59BTU
Video Resolution Up to 3840 x 2160 @ 30Hz
Environmental
Operating Temperature 0–50°C
Storage Temperature -20–60°C
Humidity 0–95% RH, Non-condensing
Physical Properties
Housing Metal
Weight 1.26 kg ( 2.78 lb )
Dimensions (L x W x H) 22.75 x 17.16 x 5.48 cm
(8.96 x 6.76 x 2.16 in.)
Package Contents
1x KE8952R 4K HDMI Single Display KVM over IP Receiver with PoE
1x HDMI LockPro
1x User Instructions
