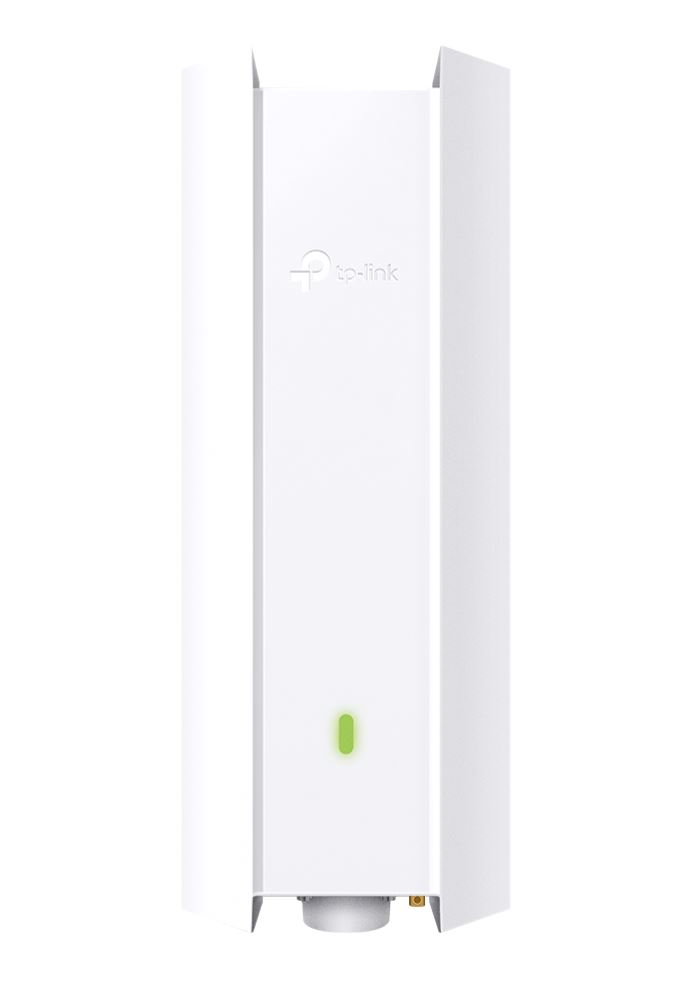

TP-Link Omada AX1800 Indoor/Outdoor Wi-Fi 6 Access Point, 2.4 GHz, 5 GHz, 1800 Mbit/s, SNMP, SNMPv2, SNMPv3, SSH, 10,100,1000 Mbit/s
TP-Link Omada AX1800 Indoor/Outdoor Wi-Fi 6 Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1800 Mbit/s. Security algorithms: SNMP, SNMPv2, SNMPv3, SSH. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White
| Features | |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1800 |
| Maximum data transfer rate (2.4 GHz) | 574 |
| Maximum data transfer rate (5 GHz) | 1201 |
| Ethernet LAN data rates | 10,100,1000 |
| Frequency band | 2.4 - 5 |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Cabling technology | 10/100/1000Base-T(X) |
| Number of users | 1020 |
| Automatic channel selection | Yes |
| Automatic channel scanning | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| VLAN support | Yes |
| Rate limiting | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Quality of Service (QoS) support | Yes |
| BeamForming | Yes |
| Transmitting power (CE) | < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP); |
| Transmitting power (FCC) | < 25 dBm (2.4 GHz), < 25 dBm (5 GHz) |
| Security | |
| Security algorithms | SNMP, SNMPv2, SNMPv3, SSH |
| MAC address filtering | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Access Control List (ACL) | Yes |
| Management features | |
| Web-based management | Yes |
| Syslog | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Design | |
| Placement | Pole |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Antenna | |
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Antennas quantity | 2 |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Weight & dimensions | |
| Width | 280.4 |
| Depth | 106.5 |
| Height | 56.8 |
| Packaging content | |
| Quantity per pack | 1 |
| Mounting kit | Yes |
| Quick start guide | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | -30 - 70 |
| Storage temperature (T-T) | -40 - 70 |
| Storage relative humidity (H-H) | 5 - 90 |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
