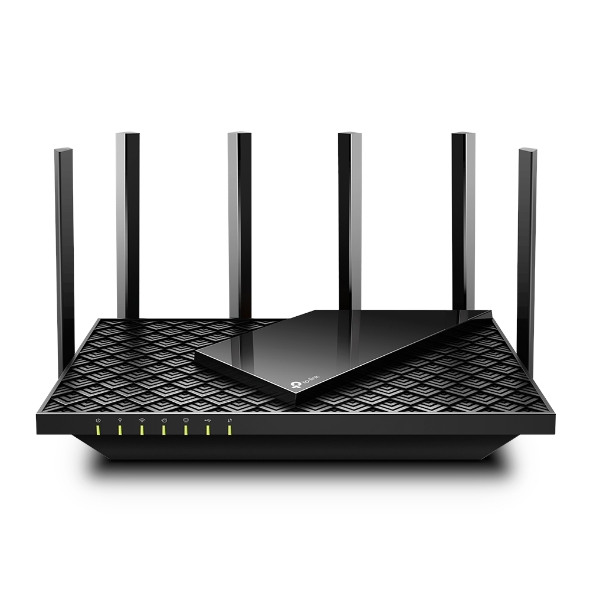

TP-Link Archer AX72, Wi-Fi 6 (802.11ax), Dual-band (2.4 GHz / 5 GHz), Ethernet LAN, Black, Portable router
TP-Link Archer AX72. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 5400 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Security algorithms: WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3. Product type: Portable router, Product colour: Black
| WAN connection | |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | Yes |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 5400 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 4804 |
| WLAN data transfer rate (second band) | 574 |
| Modulation | OFDM, 1024-QAM |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g |
| Port forwarding | Yes |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| Wireless Distribution System (WDS) bridge | Yes |
| Support Samba (storage) | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Management features | |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| MU-MIMO technology | Yes |
| MIMO | Yes |
| Security | |
| Security algorithms | WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3 |
| Firewall | Yes |
| Access Control List (ACL) | Yes |
| DoS attack prevention | Yes |
| Parental control | Yes |
| Filtering | Yes |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| DMZ support | Yes |
| Network address translation (NAT) | Yes |
| Protocols | |
| DHCP client | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Design | |
| Product colour | Black |
| On/off switch | Yes |
| Product type | Portable router |
| Antenna | |
| Antenna design | External |
| Antennas quantity | 6 |
| Features | |
| Built-in processor | Yes |
| Processor frequency | 1000 |
| Processor cores | 2 |
| Power | |
| Power source type | DC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Weight & dimensions | |
| Width | 272.5 |
| Depth | 147.2 |
| Height | 49.2 |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
