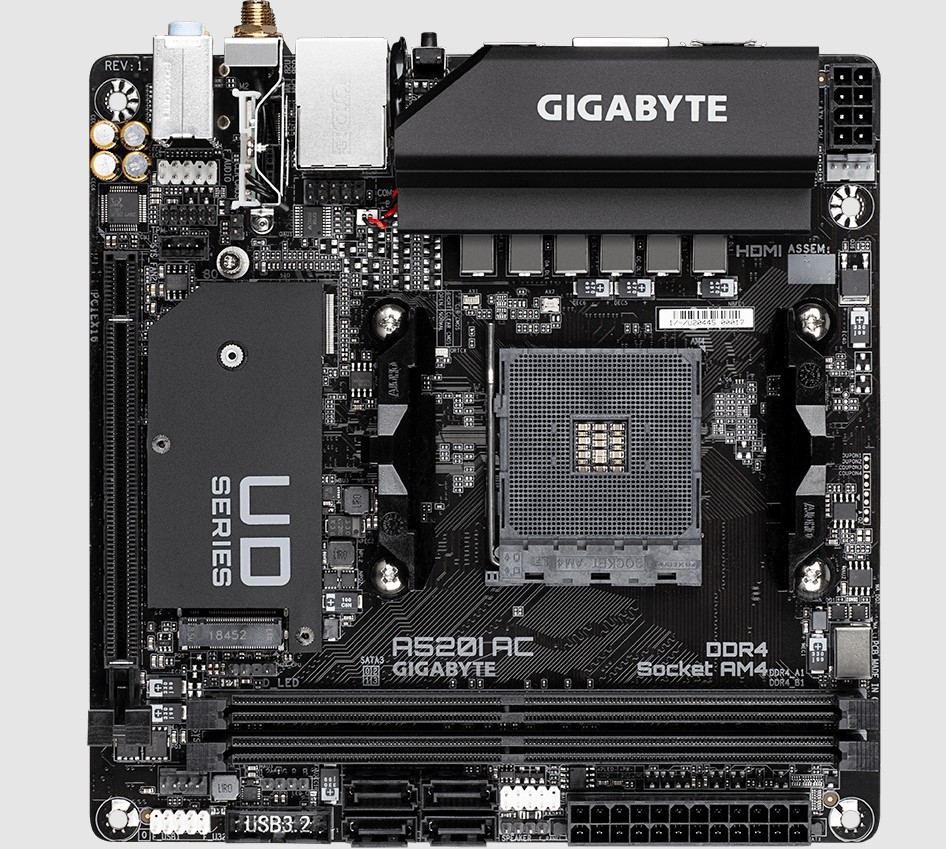

GIGABYTE A520I AC Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 6 Phases Digital VRM, up to 5300MHz DDR4 (OC), 1xPCIe 3.0 M.2, WIFI, GbE LAN, USB 3.2 Gen1, AMD, Socket AM4, AMD Ryzen 3000 Series, Socket AM4, 64 GB, DDR4-SDRAM
GIGABYTE A520I AC Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 6 Phases Digital VRM, up to 5300MHz DDR4 (OC), 1xPCIe 3.0 M.2, WIFI, GbE LAN, USB 3.2 Gen1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series |
| Supported processor sockets | Socket AM4 |
| Maximum internal memory supported by processor | 64 |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4866,5000,5100,5200 |
| Supported memory clock speed (max) | 5300 |
| Maximum internal memory | 64 |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
| Unbuffered memory | Yes |
| Storage controllers | |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 5 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Maximum resolution | 5120 x 2880 |
| HDCP | Yes |
| DirectX version | 12.0 |
| Number of displays supported | 3 |
| Internal I/O | |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Total number of SATA connectors | 4 |
| Audio connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |
| Serial port headers | 1 |
| RGB LED pin header | Yes |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 3 |
| WiFi-AP antenna jack | 2 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Features | |
| Motherboard chipset | AMD A520 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 |
| Product colour | Black |
| PC health monitoring | Fan, Temperature, Voltage |
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | AMD |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Logistics data | |
| Country of origin | China |
| Products per shipping (inner) case | 1 |
| Battery | |
| Battery weight | 3 |
| Lithium weight per battery | 0.0700 |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Packaging data | |
| Package width | 222 |
| Package depth | 189 |
| Package height | 78 |
| Package weight | 800 |
| Weight & dimensions | |
| Width | 170 |
| Depth | 170 |
| Height | 35 |
| Packaging content | |
| Batteries included | Yes |
| Bundled software | Norton® Internet Security (OEM version), Realtek® 8118 Gaming LAN Bandwidth Control Utility |
| Technical details | |
| Warranty period | 3 |
Specifications
| Brand | Gigabyte |
