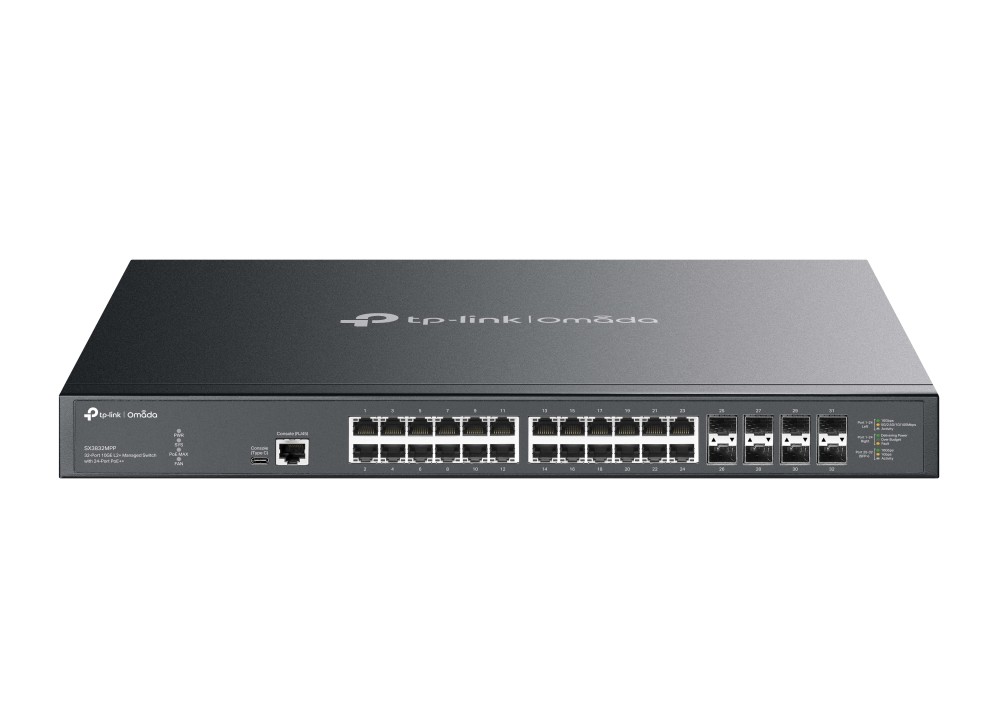

TP-Link Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++, Managed, L2+, 10G Ethernet (100/1000/10000), Power over Ethernet (PoE), Rack mounting, DIN rail
TP-Link Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 24, Installed SFP+ modules quantity: 8, Console port: RJ-45/USB Type-C. MAC address table: 32000 entries, Switching capacity: 640 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1af, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3at,.... Power over Ethernet (PoE). Rack mounting, Form factor: DIN rail
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| ARP inspection | Yes |
| Unified static configuration | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| MIB support | RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Fast Ethernet (copper) ports quantity | 24 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| 2.5G Ethernet (copper) ports quantity | 24 |
| 10G Ethernet (copper) ports quantity | 24 |
| Installed SFP+ modules quantity | 8 |
| Console port | RJ-45/USB Type-C |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1af, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3x |
| 10G support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Auto-negotiation | Yes |
| Ethernet Ring Protection Switching (ERPS) | Yes |
| Address Resolution Protocol (ARP) entries (max) | 510 |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
| VLAN support | Yes |
| Virtual LAN features | MVRP, Private VLAN, SSID-based VLAN assignment, VLAN Identifier ( VLAN ID), Voice VLAN |
| Number of VLANs | 4000 |
| Data transmission | |
| Switching capacity | 640 |
| Forwarding rate | 240 |
| MAC address table | 32000 |
| Number of queues | 8 |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9 |
| Packet buffer memory | 24 |
| Security | |
| DHCP features | DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS |
| Static port security | Yes |
| Authentication | Guest VLAN |
| DoS attack prevention | Yes |
| Authentication type | AAA, RADIUS, TACACS+ |
| CPU defense | Yes |
| Queue scheduling algorithms | Strict Priority Queue (SPQ), WRR+SP, Weighted Round Robin (WRR) |
| Multicast features | |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | Yes |
| Protocols | |
| Device link detection protocol (DLDP) | Yes |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet, IPv6 ping, IPv6 tracert |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | DIN rail |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Number of fans | 4 |
| Performance | |
| Firmware upgradeable | Yes |
| Fanless | No |
| Minimum system requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Power | |
| Power source | AC |
| Power supply included | No |
| AC input voltage | 110 - 240 |
| AC input frequency | 50/60 |
| Power consumption (typical) | 953.7 |
| Power consumption (max) | 1010.2 |
| Power saving mode (EEE) | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 90 |
| Total Power over Ethernet (PoE) budget | 770 |
| Other features | |
| Packaging content | Console Cable |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Heat dissipation | 3444.7 |
| Weight & dimensions | |
| Width | 440 |
| Depth | 330 |
| Height | 44 |
| Packaging content | |
| Cables included | Power |
| Quick start guide | Yes |
| Rack mount kit | Yes |
| Packaging data | |
| Mounting brackets included | Yes |
| Rubber feet | Yes |
| Screws included | Yes |
| Sustainability | |
| Sustainability organizations | Accountability |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
