8885020620931 TP-Link ES205GP Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+

8885020620931 TP-Link ES205GP Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+

(0 review)

Product Code: 8885020620931

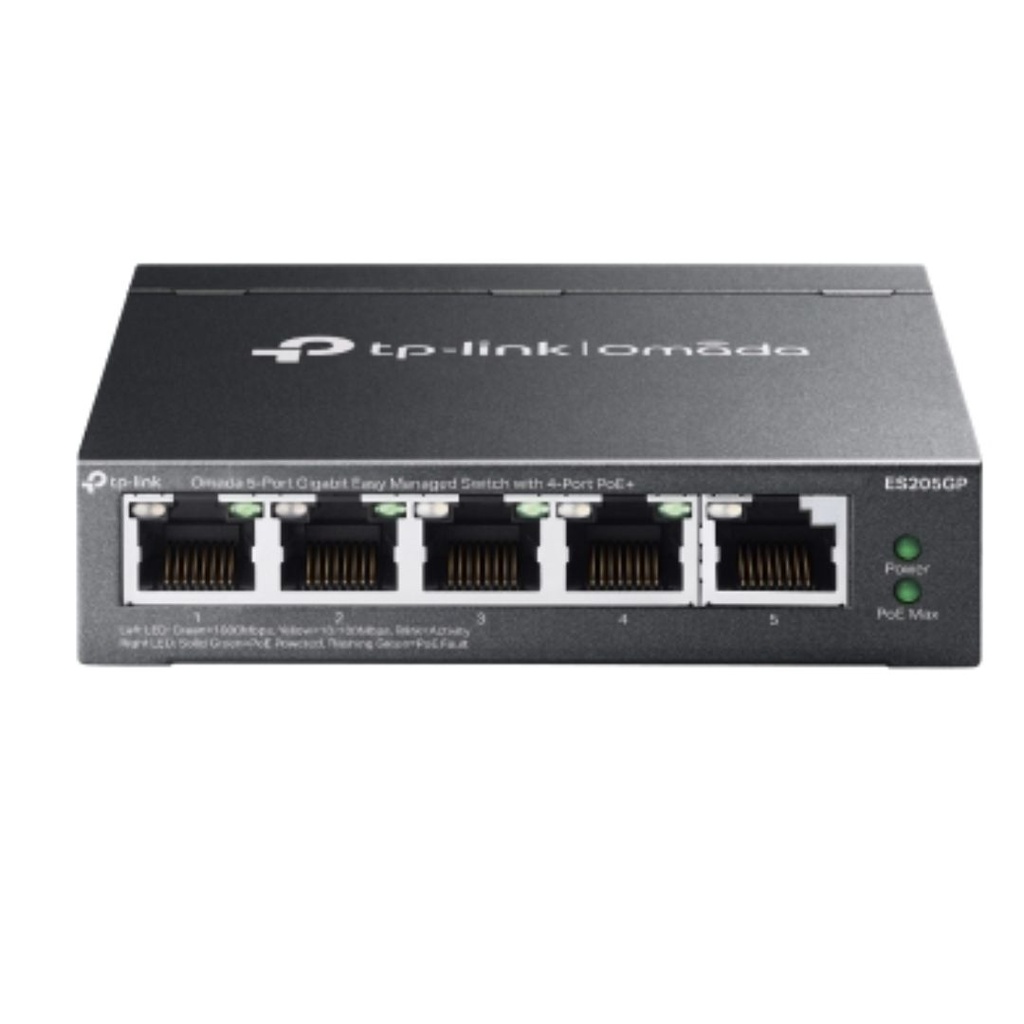

TP-Link ES205GP Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+
• 5× 10/100/1000Mbps RJ45 ports (4× 802.3at/af-compliant PoE+)
• 65W Power Budget, with up to 30W for each PoE port*
• Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
• Centralised Cloud Management via the web or the Omada app†
• Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
• Automatic Loop Prevention, VLAN, and IGMP Snooping
• Fanless design for silent operation
• Durable metal casing and desktop/wall mounting design
Warranty Period: 5-Year

$ 79.00 $ 79.00 (Tax excluded)

  • Brand
  • Manufacturer
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

TP-Link Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+, Managed, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Wall mountable

TP-Link Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 8000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x. DC input voltage: 53.5 V. Power over Ethernet (PoE). Wall mountable

Management features
Switch typeManaged
Quality of Service (QoS) supportYes
Cloud-managedYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Network
Networking standardsIEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x
10G supportNo
Port mirroringYes
Flow control supportYes
Link aggregationYes
Auto MDI/MDI-XYes
Auto-negotiationYes
VLAN supportYes
Virtual LAN featuresMTU VLAN, Port-based VLAN, Tagged VLAN
Optical fiber
Transmission distance (max)0.25
Data transmission
Switching capacity10
Forwarding rate7.4
MAC address table8000
Store-and-forwardYes
Jumbo frames supportYes
Jumbo frames15
Packet buffer memory4
Security
DHCP featuresDHCP client
IGMP snoopingYes
Loop protectionYes
Design
Product colourBlack
Reset buttonYes
LED indicatorsYes
Wall mountableYes
Performance
FanlessYes
Power
Power sourceAC/DC
Power supply includedYes
DC input voltage53.5
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity4
Power over Ethernet plus (PoE+) ports quantity4
Power over Ethernet (PoE) power per port30
Total Power over Ethernet (PoE) budget65
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-40 - 70
Operating relative humidity (H-H)10 - 90
Storage relative humidity (H-H)5 - 90
Weight & dimensions
Width100
Depth98
Height25
Packaging content
User guideYes
Packaging data
Package typeBox
Certificates
Compliance certificatesCE, Federal Communications Commission (FCC), RoHS

Specifications

Brand TP-Link
Manufacturer TP-Link
