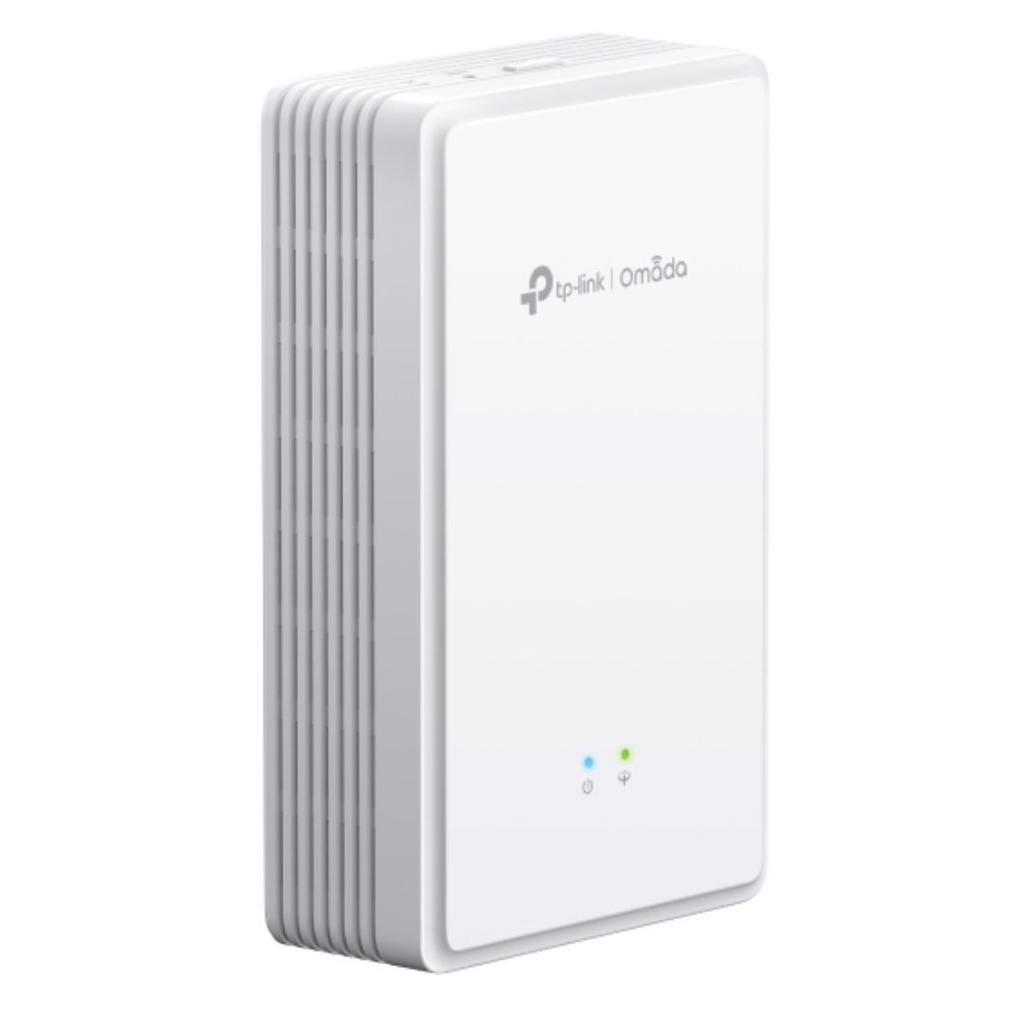

TP-Link Omada AX1800, 2.4 GHz, 5 GHz, 1201 Mbit/s, SNMP, SNMPv2, SNMPv3, SSH, WPA-Personal, WPA2-Personal, WPA3-Personal, 1000 Mbit/s
TP-Link Omada AX1800. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1201 Mbit/s. Security algorithms: SNMP, SNMPv2, SNMPv3, SSH, WPA-Personal, WPA2-Personal, WPA3-Personal. Ethernet LAN data rates: 1000 Mbit/s. Product colour: White
| Features | |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1201 |
| Maximum data transfer rate (2.4 GHz) | 574 |
| Maximum data transfer rate (5 GHz) | 1201 |
| Ethernet LAN data rates | 1000 |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Number of users | 120 |
| Channel bandwidth | 80 |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDMA |
| Wi-Fi roaming | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Wireless isolation | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Quality of Service (QoS) support | Yes |
| BeamForming | Yes |
| Transmitting power (CE) | 20 |
| Transmitting power (FCC) | 21 |
| Security | |
| Security algorithms | SNMP, SNMPv2, SNMPv3, SSH, WPA-Personal, WPA2-Personal, WPA3-Personal |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs, SSID broadcast on/off |
| Number of SSID supported | 16 |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Management features | |
| Web-based management | Yes |
| Syslog | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| Input current | 0.5 |
| Power consumption (typical) | 12.2 |
| Design | |
| Placement | Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Power |
| Antenna | |
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antennas quantity | 2 |
| Antenna gain level (max) | 6.5 |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Certification | CE, FCC, RoHS, IC |
| Weight & dimensions | |
| Width | 143 |
| Depth | 86 |
| Height | 37.6 |
| Weight | 320 |
| Packaging content | |
| Quantity per pack | 1 |
| Mounting kit | Yes |
| Quick start guide | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Storage relative humidity (H-H) | 5 - 90 |
| Sustainability | |
| Sustainability compliance | Yes |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
