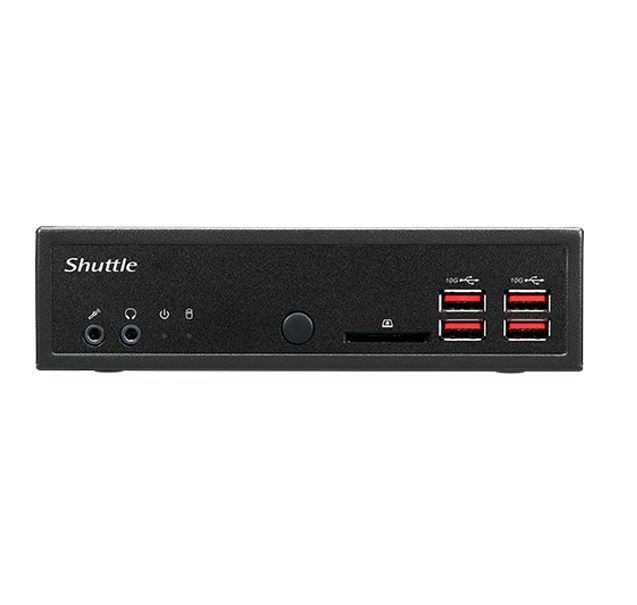

Shuttle XPC slim Barebone DH32U, Intel Pentium Gold 7505, 4x HDMI 2.0b 2x LAN, 2x COM, incl. VESA 24/7 permanent operation, 1.35L sized PC, Mini PC barebone, Intel SoC, DDR4-SDRAM, PCI Express, Serial ATA III, 90 W
Shuttle XPC slim Barebone DH32U, Intel Pentium Gold 7505, 4x HDMI 2.0b 2x LAN, 2x COM, incl. VESA 24/7 permanent operation. Chassis type: 1.35L sized PC, Product type: Mini PC barebone. Motherboard chipset: Intel SoC, BIOS type: UEFI AMI. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: HDD & SSD, Storage drive interface: PCI Express, Serial ATA III. Ethernet LAN (RJ-45) ports: 2. Cooling type: Active. Power supply: 90 W
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Pentium® Gold |
| Processor model | 7505 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 3.5 |
| Built-in processor | Yes |
| Processor lithography | 10 |
| Processor cache | 4 |
| CPU configuration (max) | 1 |
| Memory | |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 |
| Supported memory clock speeds | 3200 |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage | 1.2 |
| Storage | |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,M.2 |
| Storage drive interface | PCI Express, Serial ATA III |
| Number of storage drives supported | 2 |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
| Graphics | |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics |
| Maximum resolution | 4096 x 2304 |
| Audio | |
| Built-in speaker(s) | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel® I211 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| HDMI ports quantity | 4 |
| HDMI version | 2.0b |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Serial ports quantity | 2 |
| DC-in jack | Yes |
| Expansion slots | |
| PCI Express slots version | 4.0 |
| Number of M.2 (M) slots | 1 |
| Design | |
| Chassis type | 1.35L sized PC |
| Product colour | Black |
| Cooling type | Active |
| LED indicators | HDD, Power |
| Housing material | Metal |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Product type | Mini PC barebone |
| Performance | |
| Motherboard chipset | Intel SoC |
| Number of processors supported | 1 |
| BIOS type | UEFI AMI |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio output channels | 5.1 |
| Processor special features | |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Idle States | Yes |
| Intel Trusted Execution Technology | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84713000 |
| Software | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Linux operating systems supported | Yes |
| Operating system installed | No |
| Power | |
| Power supply type | External AC adapter |
| Power supply | 90 |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 |
| AC input frequency | 50 - 60 |
| AC adapter output voltage | 19 |
| AC adapter output current | 4.74 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 |
| Operating relative humidity (H-H) | 10 - 90 |
| Weight & dimensions | |
| Width | 190 |
| Depth | 165 |
| Height | 43 |
| Weight | 1.3 |
| Package weight | 2.1 |
| Packaging content | |
| Power cord included | Yes |
| AC adapter included | Yes |
| Drivers included | Yes |
| Other features | |
| Country of origin | China |
Specifications
| Brand | Shuttle |
