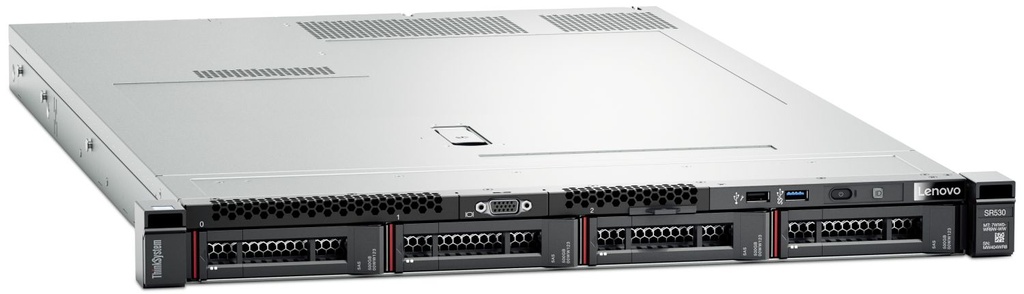

Lenovo ThinkSystem SR530, 2.2 GHz, 4210, 32 GB, DDR4-SDRAM, 750 W, Rack (1U)
Lenovo ThinkSystem SR530. Processor family: Intel Xeon Silver, Processor frequency: 2.2 GHz, Processor model: 4210. Internal memory: 32 GB, Internal memory type: DDR4-SDRAM, Memory layout (slots x size): 1 x 32 GB. Ethernet LAN, Cabling technology: 10/100/1000Base-T(X). Power supply: 750 W, Redundant power supply (RPS) support. Chassis type: Rack (1U)
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor model | 4210 |
| Processor frequency | 2.2 |
| Processor boost frequency | 3.2 |
| Processor cores | 10 |
| Processor cache | 13.75 |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 85 |
| Processor socket | LGA 3647 (Socket P) |
| Processor lithography | 14 |
| Processor threads | 20 |
| Processor operating modes | 64-bit |
| Processor codename | Cascade Lake |
| Tcase | 78 |
| Maximum internal memory supported by processor | 1 |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2400 |
| Execute Disable Bit | Yes |
| Maximum number of PCI Express lanes | 48 |
| Processor package size | 76.0 x 56.5 |
| Supported instruction sets | AVX-512 |
| Scalability | 2S |
| Embedded options available | Yes |
| Memory | |
| Internal memory | 32 |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 12 |
| Memory clock speed | 2933 |
| Memory layout (slots x size) | 1 x 32 |
| Storage | |
| Number of HDDs supported | 8 |
| Supported HDD sizes | 2.5 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Supported RAID controllers | 930-8i 2GB Flash |
| Hot-swap | Yes |
| Optical drive type | No |
| Graphics | |
| On-board graphics card | Yes |
| On-board graphics card model | Not available |
| Network | |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| PS/2 ports quantity | 1 |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| Design | |
| Chassis type | Rack (1U) |
| Product colour | Black, Silver |
| Rack mounting | Yes |
| Performance | |
| Performance management | XClarity Enterprise |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 1.2 |
| Software | |
| Compatible operating systems | Microsoft Windows Server 2016, Microsoft Windows Server 2019, Red Hat Enterprise Linux 7.6, Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 8.0, Red Hat Enterprise Linux 8.1, Red Hat Enterprise Linux 8.2, SUSE Linux Enterprise Server 12 SP4, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 12 Xen SP4, SUSE Linux Enterprise Server 12 Xen SP5, SUSE Linux Enterprise Server 15, SUSE Linux Enterprise Server 15 SP1, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 Xen, SUSE Linux Enterprise Server 15 Xen SP1, SUSE Linux Enterprise Server 15 Xen SP2, VMware ESXi 6.5 U2, VMware ESXi 6.5 U3, VMware ESXi 6.7 U1, VMware ESXi 6.7 U2, VMware ESXi 6.7 U3, VMware ESXi 7.0, VMware ESXi 7.0 U1 |
| Processor special features | |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 193384 |
| Power | |
| Redundant power supply (RPS) support | Yes |
| Power supply | 750 |
| Number of redundant power supplies supported | 2 |
| Number of main power supplies | 1 |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width | 435 |
| Depth | 750 |
| Height | 43 |
Specifications
| Brand | Lenovo |
