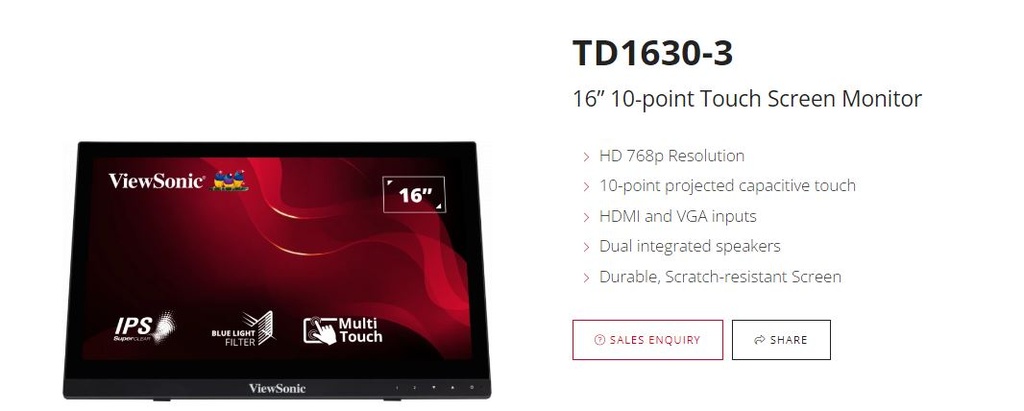

Viewsonic TD1630-3, 39.6 cm (15.6"), 1366 x 768 pixels, HD, LCD, 12 ms, Black
Viewsonic TD1630-3. Display diagonal: 39.6 cm (15.6"), Display resolution: 1366 x 768 pixels, HD type: HD, Display technology: LCD, Response time: 12 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 90°, Viewing angle, vertical: 60°. Built-in speaker(s). Built-in USB hub. VESA mounting. Product colour: Black
| Display | |
|---|---|
| Display diagonal | 39.6 |
| Display resolution | 1366 x 768 |
| HD type | HD |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Panel type | TN |
| Touchscreen | Yes |
| Touchscreen type | Multi-user |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness | 220 |
| Response time | 12 |
| Screen shape | Flat |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 400, 720 x 480, 720 x 576, 800 x 600 (SVGA), 832 x 624, 1024 x 768 (XGA), 1152 x 870, 1280 x 720 (HD 720), 1366 x 768 |
| Contrast ratio (typical) | 500:1 |
| Contrast ratio (dynamic) | 10000000:1 |
| Maximum refresh rate | 60 |
| Viewing angle, horizontal | 90 |
| Viewing angle, vertical | 60 |
| Display number of colours | 262144 colours |
| Pixel pitch | 0.252 x 0.252 |
| Horizontal scan range | 30 - 61 |
| Vertical scan range | 56 - 75 |
| Display diagonal (metric) | 39.6 |
| Performance | |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
| Mac operating systems supported | Yes |
| Multimedia | |
| Number of speakers | 2 |
| RMS rated power | 2 |
| Built-in speaker(s) | Yes |
| Built-in microphone | No |
| Built-in camera | No |
| Design | |
| Product colour | Black |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Audio input | 1 |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75 |
| Wall mountable | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | 15 - 50 |
| Power | |
| Energy efficiency class (SDR) | B |
| Energy consumption (SDR) per 1000 hours | 6 |
| Power consumption (typical) | 5.5 |
| AC input voltage | 100-240 |
| AC input frequency | 50 - 60 |
| Power supply type | AC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 20 - 85 |
| Storage relative humidity (H-H) | 5 - 90 |
| Weight & dimensions | |
| Width (with stand) | 379.2 |
| Depth (with stand) | 37.1 |
| Height (with stand) | 247.1 |
| Weight (with stand) | 1.32 |
| Packaging data | |
| Package width | 453 |
| Package depth | 86 |
| Package height | 389 |
| Package weight | 2.5 |
| Packaging content | |
| Cables included | AC, Audio (3.5mm), USB, VGA |
| Sustainability | |
| Sustainability certificates | ErP |
| Other features | |
| Display viewable area (HxV) | 344.2 x 193.5 |
| Weight | 1.3 |
| Compliance certificates | CE, REACH, RoHS |
| Certification | CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, BIS |
| Logistics data | |
| Products per master (outer) case | 1 |
| Pallet gross width | 120 |
| Pallet gross length | 100 |
| Pallet gross height | 2.17 |
| Harmonized System (HS) code | 8528521000 |
Specifications
| Brand | ViewSonic |
