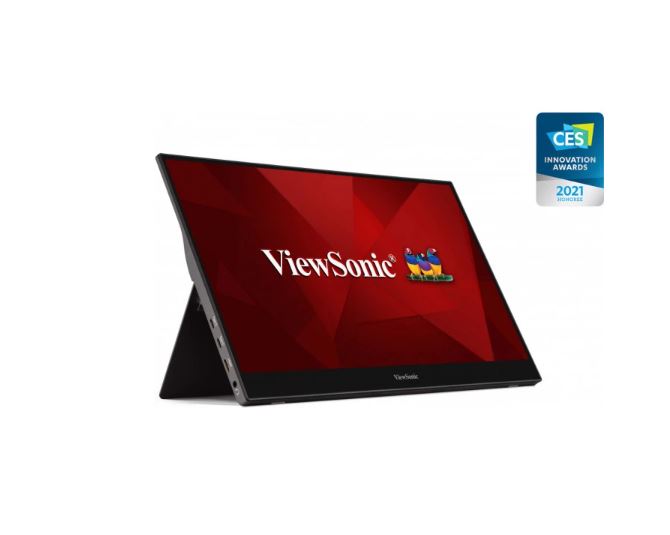

766907007077 ViewSonic 16” TD1655 Touchscreen FHD IPS , 2x Type-C (Power in with Video Data). 3.5mm Audio, Mini HDMI x 1, Ultra Portable Monitor

766907007077 ViewSonic 16” TD1655 Touchscreen FHD IPS , 2x Type-C (Power in with Video Data). 3.5mm Audio, Mini HDMI x 1, Ultra Portable Monitor

(0 review)

Product Code: 766907007077

The ViewSonic TD1655 is a portable 16” Full HD touch monitor perfect for overcoming one-screen limitations outside the office. Extend the screen from phones, tablets, or laptops for mobile work, one-on-one presentations, or leisure entertainment. The two universal USB Type C connectors provide a one-cable solution for audiovisual, power, and touch signal transmission. The adjustable wide stand and pivot-able display will support your working angles. With the anti-slip cover, metal case, aluminum stand, and 6H hardness screen, reliability is embodied in the design.
Display Size (in.): 16
Viewable Area (in.): 15.6
Panel Type: IPS Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 800:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 262K
Color Space Support: 6 bit true
Aspect Ratio: 16:9
Response Time (Typical GTG): 6.5ms
Response Time (GTG w/OD): 6.599ms
Response Time (Typical Tr+Tf): 30ms
Viewing Angles: 178º horizontal, 178º vertical, CR>5; 170º horizontal, 170º vertical, CR>10
Backlight Life (Hours): 15000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Blue Light Filter: Yes
Color Gamut: NTSC: 45% size (Typ)
sRGB: 64% size (Typ)
Pixel Size: 0.179 mm (H) x 0.179 mm (V)
Touch Screen: Projected Capacitive, 10-point multi-touch
Surface Treatment: Glossy w/ anti-finger print, Hard Coating (≧6H)
Cover Glass Thickness: 0.8mm
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 10/11 certified; macOS tested
Mac® Resolution (min): 1920x1080
Connector
USB 3.2 Type C Up Stream; DisplayPort Alt mode : 2 (60W power charger)
3.5mm Audio Out: 1
Mini HDMI: 1
Power in: USB Type C (with video data)
Power
Eco Mode (Conserve): 6W
Eco Mode (optimized): 6.9W
Consumption (typical): 8W
Consumption (max): 8.3W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: External Power Adaptor

$ 669.00 $ 669.00 (Tax excluded)

  • Brand
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Viewsonic TD1655, 39.6 cm (15.6"), 1920 x 1080 pixels, Full HD, LED, 6.5 ms, Black, Silver

Viewsonic TD1655. Display diagonal: 39.6 cm (15.6"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 6.5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub. Product colour: Black, Silver

Display
Display diagonal39.6
Display resolution1920 x 1080
HD typeFull HD
Native aspect ratio16:9
Display technologyLED
Panel typeIPS
TouchscreenYes
Touchscreen typeMulti-user
Touchscreen technologyProjected capacitive system
Touch technologyMulti-touch
Number of simultaneous touchpoints10
Display brightness250
Response time6.5
Screen shapeFlat
Supported graphics resolutions640 x 480 (VGA), 720 x 400, 720 x 480, 720 x 576, 800 x 600 (SVGA), 832 x 624, 1024 x 768 (XGA), 1152 x 870, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Contrast ratio (typical)800:1
Contrast ratio (dynamic)80000000:1
Maximum refresh rate60
Viewing angle, horizontal178
Viewing angle, vertical178
Display number of colours262144 colours
Pixel pitch0.179 x 0.179
Horizontal scan range15 - 82
Vertical scan range50 - 75
Display diagonal (metric)39.6
Performance
NVIDIA G-SYNCNo
AMD FreeSyncNo
Windows operating systems supportedWindows 10
Mac operating systems supportedYes
Multimedia
Number of speakers2
RMS rated power1.6
Built-in speaker(s)Yes
Built-in microphoneNo
Built-in cameraNo
Design
Product colourBlack, Silver
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity2
Built-in USB hubYes
USB upstream port typeUSB Type-C
Audio output1
Ergonomics
Wall mountableNo
Tilt adjustmentYes
Tilt angle range-20 - 60
Power
Energy efficiency class (SDR)C
Energy consumption (SDR) per 1000 hours8
Power consumption (typical)8
Power consumption (standby)0.5
AC input voltage100-240
AC input frequency50 - 60
Power supply typeAC
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)20 - 90
Storage relative humidity (H-H)5 - 90
Weight & dimensions
Width (with stand)355
Depth (with stand)16
Height (with stand)223
Weight (with stand)1
Packaging data
Package width440
Package depth288
Package height89
Package weight2.3
Packaging content
Cables includedMini-HDMI, USB Type-C, USB Type-C to USB Type-A
Sustainability
Sustainability certificatesEPEAT Bronze
Other features
Display viewable area (HxV)344 x 194
Weight1
Compliance certificatesCE, REACH, RoHS
CertificationcTUVus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, NRCan, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO
Logistics data
Products per master (outer) case4
Pallet gross width120
Pallet gross length100
Pallet gross height196.8
Harmonized System (HS) code8528521000

Specifications

Brand ViewSonic
