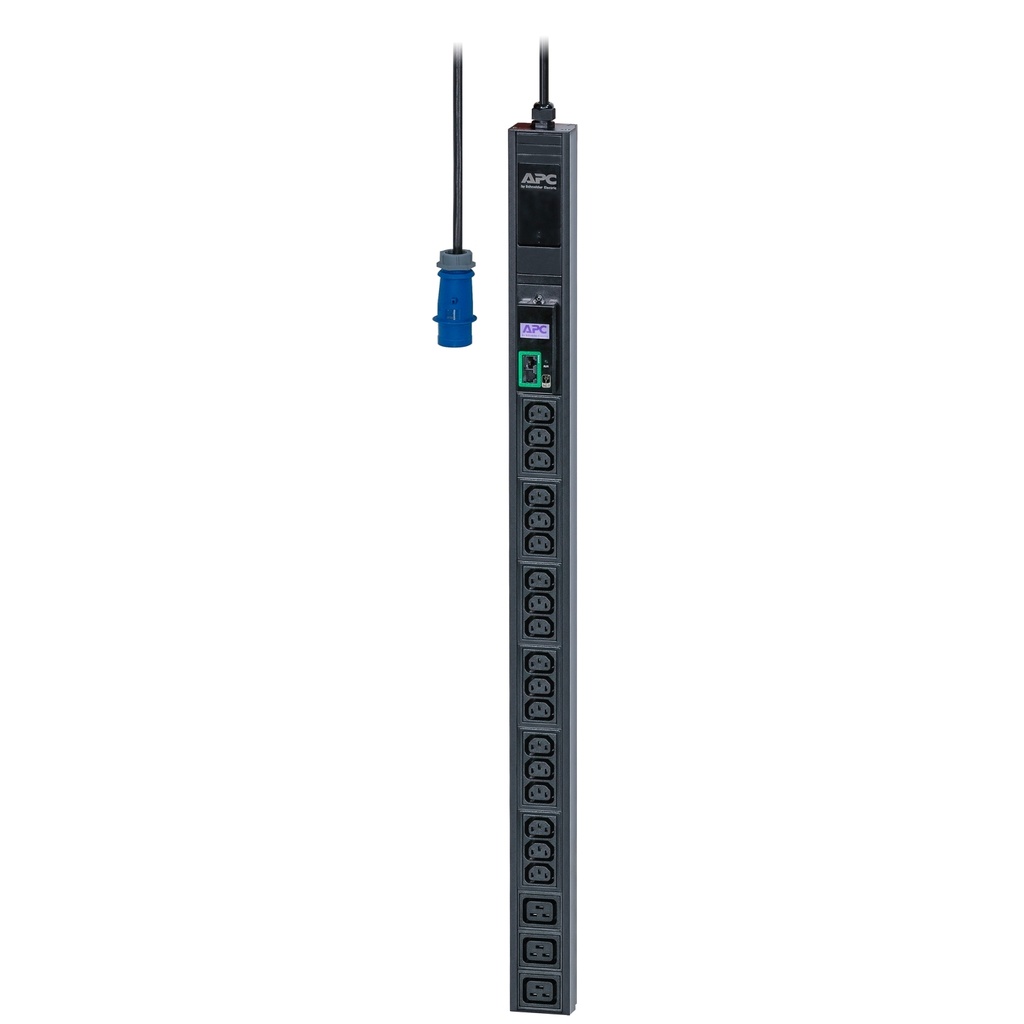

731304405085 APC Easy Rack Metered PDU, 0U Vertical, 230V/16A 2P+E Input, 1 Phase, 3.7kW, 3x IEC C19 18x IEC C13 Outlets

731304405085 APC Easy Rack Metered PDU, 0U Vertical, 230V/16A 2P+E Input, 1 Phase, 3.7kW, 3x IEC C19 18x IEC C13 Outlets

(0 review)

Product Code: 731304405085

APC Easy Rack PDU, Metered, 0U, 1 Phase, 3.7kW, 230V, 16A, 18 x C13 and 3 x C19 outlets, IEC60309 2P+E inlet
APC Easy Metered Rack PDU EPDU1116M is Easy-to-install and easy-to-use PDU, making rack power distribution easy and intelligent. This provides real-time remote monitoring, power management of connected loads, and much more features than the average power strip. EPDU1116M has IEC 60309 16A 2P+E type inlet, eighteen IEC C13 and three IEC C19 type outlet sockets. This is vertical rack mountable PDU in ultra light weight and smart, multifunctional new designed display. Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Full-featured user friendly network management web interface provides standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released.
Colour Black
PDU type Metered
Cord length 3.00 m
Number of cables 1
Provided equipment- Installation guide, User manual, Vertical mounting brackets
Input Voltage 200 V 208 V 230 V
Rack units 0U
Mounting position Vertical
Input current limits 16 A
Load capacity 3680 VA
Network frequency 50/60 Hz
Total number of outlets 18 IEC 60320 C13 3 IEC 60320 C19
Product certifications CE TÜV
Ambient air temperature for operation -5…45 °C
Relative humidity 5…95 %
Operating altitude 0...10000 ft
Ambient air temperature for storage -25…65 °C
Storage Relative Humidity 5…95 %
Storage altitude 0.00…15240.00 m
Mounting mode- Rack mounted
Compatible Racks- AR3100, AR3100W, AR3104, AR3105

$ 979.00 $ 979.00 (Tax excluded)

  • Brand
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

APC Easy Rack PDU, Metered, 0U, 1 Phase, 3.7kW, 230V, 16A, 18 x C13 and 3 x C19 outlets, IEC60309 2P+E inlet, Metered, 0U, Single-phase, Vertical, Aluminium, Black

APC Easy Rack PDU, Metered, 0U, 1 Phase, 3.7kW, 230V, 16A, 18 x C13 and 3 x C19 outlets, IEC60309 2P+E inlet. PDU types: Metered, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 21 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 60309. Cable length: 3 m. Monitoring: Current, Power, Voltage. Nominal input voltage: 200/208/230 V, Maximum current: 16 A, AC input frequency: 50 - 60 Hz

Design
PDU typesMetered
TypeSingle-phase
Rack capacity0U
MountingVertical
Housing materialAluminium
Product colourBlack
DisplayLCD
On/off switchNo
Ports & interfaces
AC outlets quantity21
Power plugIEC 60309
AC outlet typesC13 coupler, C19 coupler
Features
Daisy chainNo
LED indicatorsYes
Cable length3
Management features
MonitoringCurrent, Power, Voltage
Firmware upgradeableYes
Power
Nominal input voltage200/208/230
AC input frequency50 - 60
Maximum current16
Nominal output voltage230
Load capacity3680
Maximum input current per phase16
Maximum power3680
Certificates
Compliance certificatesRoHS
CertificationCE, TUV
Operational conditions
Operating temperature (T-T)-5 - 45
Storage temperature (T-T)-25 - 65
Operating relative humidity (H-H)5 - 95
Storage relative humidity (H-H)5 - 95
Operating altitude0 - 3000
Non-operating altitude0 - 15000
Weight & dimensions
Width62
Depth44
Height902
Weight2.5
Packaging content
ManualYes
Packaging data
Package weight3
Package width160
Package depth110
Package height1320
Logistics data
Total carbon footprint (kg of CO2e)18942.6

Specifications

Brand APC
