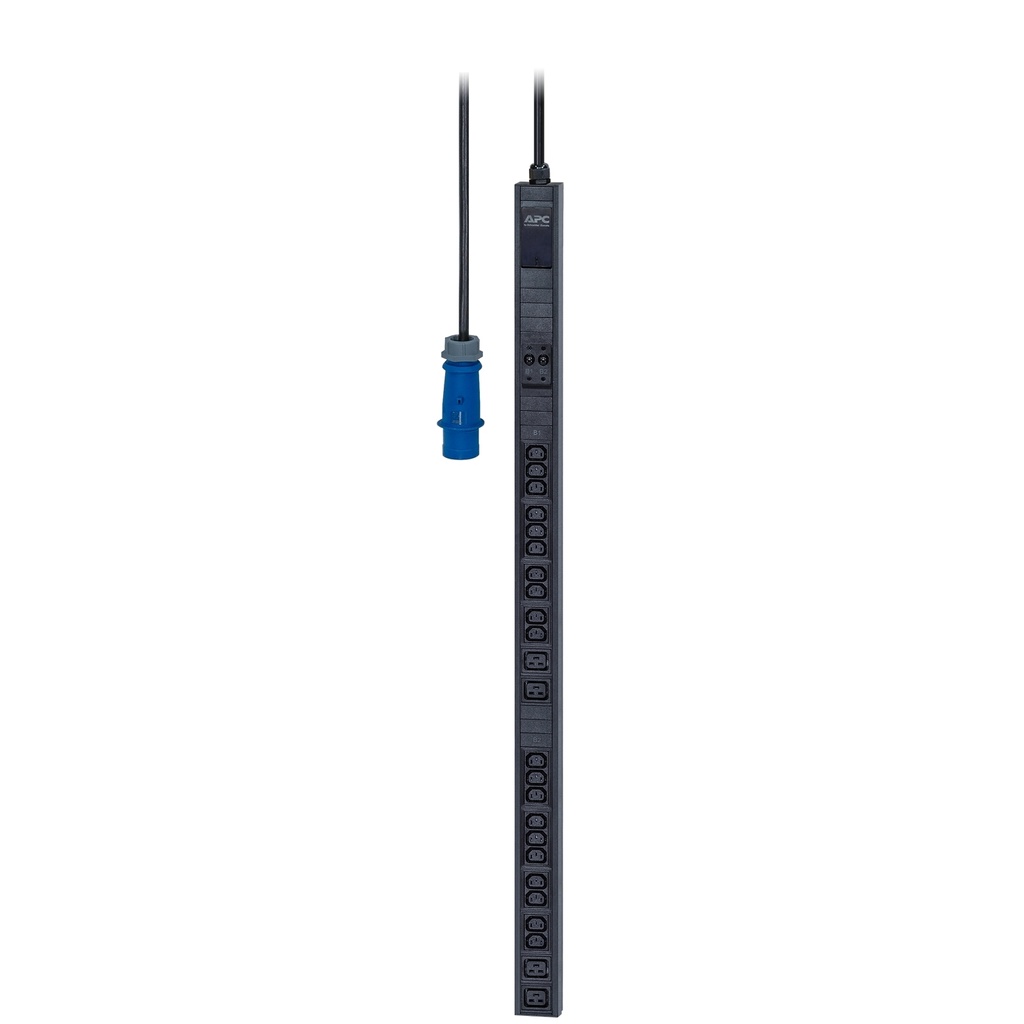

731304405023 APC Easy Rack Basic PDU, 0U Vertical, 230V/32A 2P+E Input, 1 Phase, 7.4kW, 4x IEC C19 20x IEC C13 Outlets

731304405023 APC Easy Rack Basic PDU, 0U Vertical, 230V/32A 2P+E Input, 1 Phase, 7.4kW, 4x IEC C19 20x IEC C13 Outlets

(0 review)

Product Code: 731304405023

APC Easy Rack Basic PDU, 0U Vertical, 230V/32A 2P+E Input, 1 Phase, 7.4kW, 4x IEC C19 20x IEC C13 Outlets
APC Easy Basic Rack PDU EPDU1132B is Easy-to-install and easy-to-use PDU, making rack power distribution easy. This offers more than a power strip for server rack and network rack solutions. This is Vertical rack mountable PDU in ultra light weight upto 50% weight reduction with Aluminum housing. This is integrated with Hydraulic-magnetic circuit breakers (in units with 32A input current).The packaging includes installation guide, toolless mounting kit and mounting brackets for quick and easy mounting in the rear of the enclosure. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Saves time and money during installation by using one branch whip and standard connections. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip.
Main Input Voltage: 200 V/208 V/230 V
PDU type: Basic
Main Output Voltage: 230 V
Input Connection Type: IEC 60309 32 A 2P + E
Number of rack unit: 0U
Cable length: 3.00 m
Number of cables: 1
Provided equipment- Installation guide, Toolless mounting kit, Vertical mounting brackets
Colour: Black
Input current limits: 32 A
Load capacity: 7360 VA
Network frequency: 50/60 Hz
Number of power socket outlets: 20 IEC 60320 C13/4 IEC 60320 C19
Product certifications: CE/TÜV
Ambient air temperature for operation: 0…45 °C
Relative humidity: 5…95 %
Operating altitude: 0...10000 ft
Ambient air temperature for storage: -25…65 °C
Storage Relative Humidity: 5…95 %
Storage altitude: 0.00…9144.00 m
Mounting mode- Rack mounted
Compatible Racks- AR3100, AR3100W, AR3105

$ 569.00 $ 569.00 (Tax excluded)

  • Brand
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

APC Easy Rack PDU, Basic, 0U, 1 Phase, 7.4kW, 230V, 32A, 20 x C13 and 4 x C19 outlets, IEC60309 2P+E inlet, Basic, 0U, Single-phase, Vertical, Aluminium, Black

APC Easy Rack PDU, Basic, 0U, 1 Phase, 7.4kW, 230V, 32A, 20 x C13 and 4 x C19 outlets, IEC60309 2P+E inlet. PDU types: Basic, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 60309. Nominal input voltage: 200/208/230 V, Maximum current: 32 A, AC input frequency: 50 - 60 Hz. Certification: CE, TUV. Width: 62 mm, Depth: 44 mm, Height: 1175 mm

Design
PDU typesBasic
TypeSingle-phase
Rack capacity0U
MountingVertical
Housing materialAluminium
Product colourBlack
On/off switchNo
Ports & interfaces
AC outlets quantity24
Power plugIEC 60309
AC outlet typesC13 coupler, C19 coupler
Power
Nominal input voltage200/208/230
AC input frequency50 - 60
Maximum current32
Nominal output voltage230
Load capacity7360
Maximum input current per phase32
Certificates
CertificationCE, TUV
Operational conditions
Operating temperature (T-T)0 - 45
Storage temperature (T-T)-25 - 65
Operating relative humidity (H-H)5 - 95
Storage relative humidity (H-H)5 - 95
Operating altitude0 - 3000
Non-operating altitude0 - 9000
Weight & dimensions
Width62
Depth44
Height1175
Weight3.58
Packaging content
ManualYes
Packaging data
Package weight4.36
Package width160
Package depth110
Package height1320
Logistics data
Total carbon footprint (kg of CO2e)89.04

Specifications

Brand APC
