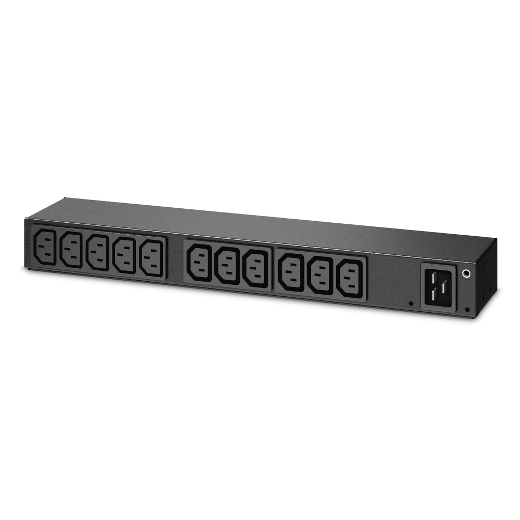

APC AP6020A, Basic, 0U/1U, Single-phase, Horizontal/Vertical, Black, 13 AC outlet(s)
APC AP6020A. PDU types: Basic, Rack capacity: 0U/1U, Type: Single-phase. AC outlets quantity: 13 AC outlet(s), AC outlet types: C13 coupler, Power plug: C20 coupler. Nominal input voltage: 100-240 V, Maximum current: 20 A, AC input frequency: 50 - 60 Hz. Compliance certificates: RoHS, Certification: cUL Listed, CE, EAC, IRAM, PSE, UL Listed, VDE, REACH. Width: 44 mm, Depth: 93 mm, Height: 388 mm
| Design | |
|---|---|
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 0U/1U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 13 |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler |
| Output connections | IEC 320 C13 |
| Power | |
| Nominal input voltage | 100-240 |
| AC input frequency | 50 - 60 |
| Maximum current | 20 |
| Load capacity | 3680 |
| Maximum input current per phase | 16 |
| Maximum total current draw per phase | 16 |
| Maximum power | 3680 |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | cUL Listed, CE, EAC, IRAM, PSE, UL Listed, VDE, REACH |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 |
| Storage temperature (T-T) | -15 - 60 |
| Operating relative humidity (H-H) | 5 - 95 |
| Storage relative humidity (H-H) | 5 - 95 |
| Operating altitude | 0 - 3048 |
| Weight & dimensions | |
| Width | 44 |
| Depth | 93 |
| Height | 388 |
| Weight | 1.5 |
| Packaging data | |
| Package weight | 2.02 |
| Package width | 210 |
| Package depth | 76 |
| Package height | 436 |
| Logistics data | |
| Total carbon footprint (kg of CO2e) | 38.04 |
Specifications
| Brand | APC |
