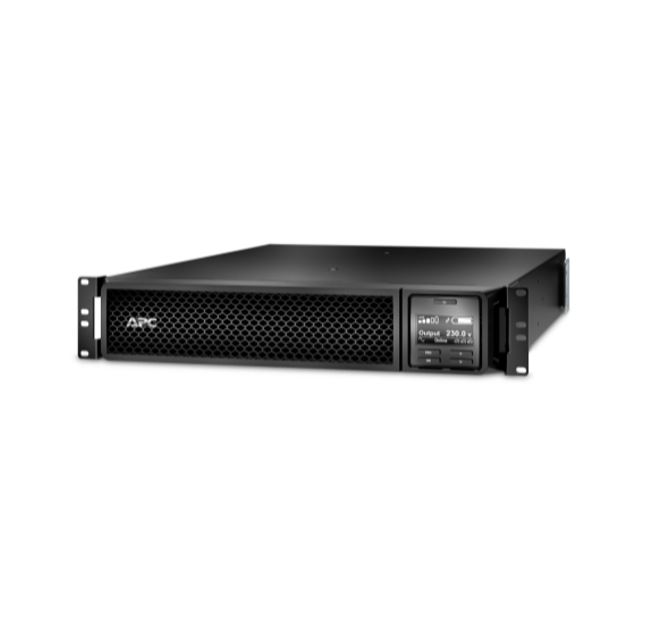

APC Smart-UPS On-Line SRT3000RMXLI - 3000VA, 8x C13 & 2x C19, rackmount, Double-conversion (Online), 3 kVA, 2700 W, Sine, 100 V, 275 V
APC Smart-UPS On-Line SRT3000RMXLI - 3000VA, 8x C13 & 2x C19, rackmount. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 2700 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, Serial interface type: RJ-45. Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 505 VAh, Typical backup time at full load: 4 min. Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Compliance certificates: RoHS, Certification: CE, VDE, RCM, EAC, IEC/EN 62040-1, IEC/EN 62040-2, UL-1778, FCC 15 A, CSA
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 3 |
| Output power | 2700 |
| Waveform | Sine |
| Input operation voltage (min) | 100 |
| Input operation voltage (max) | 275 |
| Input frequency | 40 - 70 |
| Output operation voltage (min) | 220 |
| Output operation voltage (max) | 240 |
| Output frequency | 50/60 |
| Automatic Voltage Regulation (AVR) | Yes |
| Surge energy rating | 340 |
| Efficiency | 92 |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 2 |
| Noise level | 55 |
| Surge protection | Yes |
| Power protection features | Overload |
| Audible alarm(s) | Yes |
| Audible alarm modes | Battery replacement |
| Auto-restart | Yes |
| Ports & interfaces | |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | C20 coupler |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| SmartConnect port | No |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 505 |
| Typical backup time at full load | 4 |
| Typical backup time at half load | 11.8 |
| Battery life (max) | 5 |
| Battery recharge time | 3 |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Cold start | Yes |
| Design | |
| Form factor | Rackmount |
| Rack capacity | 2U |
| Cable length | 2.44 |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Battery replacement |
| International Protection (IP) code | IP20 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -15 - 45 |
| Operating relative humidity (H-H) | 0 - 95 |
| Storage relative humidity (H-H) | 0 - 95 |
| Operating altitude | 0 - 3000 |
| Non-operating altitude | 0 - 15000 |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, VDE, RCM, EAC, IEC/EN 62040-1, IEC/EN 62040-2, UL-1778, FCC 15 A, CSA |
| Packaging content | |
| Management card included | No |
| Quick installation guide | Yes |
| Sustainability | |
| Sustainability certificates | Green Premium |
| Weight & dimensions | |
| Width | 432 |
| Depth | 635 |
| Height | 85 |
| Weight | 31.3 |
| Packaging data | |
| Package width | 599 |
| Package depth | 871 |
| Package height | 246 |
| Package weight | 39.3 |
| Logistics data | |
| Products per pallet | 6 |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 4993.35 |
| Other features | |
| Output voltage | 230 |
Specifications
| Brand | APC |
