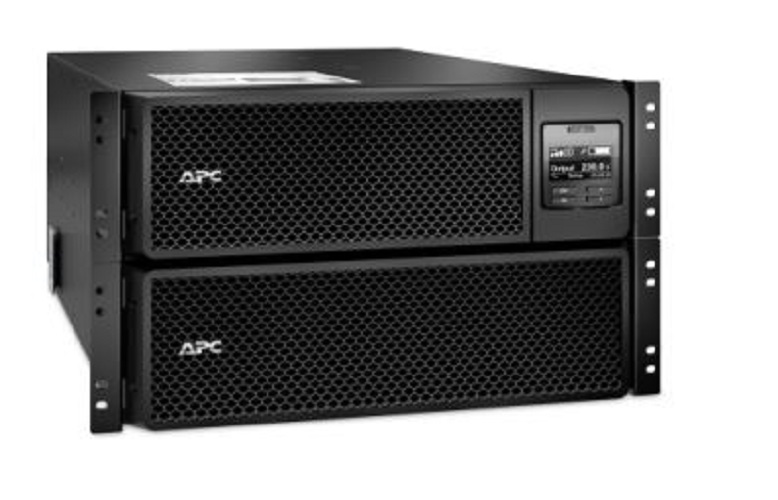

APC Smart-UPS On-Line SRT8KRMXLI - 8kW/VA, 6x C13 + 4x C19 + hardwire 1phase output, rack mountable, Embedded NMC, Double-conversion (Online), 8 kVA, 8000 W, Sine, 100 V, 476 V
APC Smart-UPS On-Line SRT8KRMXLI - 8kW/VA, 6x C13 + 4x C19 + hardwire 1phase output, rack mountable, Embedded NMC. UPS topology: Double-conversion (Online), Output power capacity: 8 kVA, Output power: 8000 W. AC outlet types: C13 coupler, C19 coupler, Power plug: Hardwire, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 1728 VAh, Typical backup time at full load: 5.2 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 6U. Compliance certificates: RoHS, Certification: REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 8 |
| Output power | 8000 |
| Waveform | Sine |
| Input operation voltage (min) | 100 |
| Input operation voltage (max) | 476 |
| Input frequency | 40 - 70 |
| Output operation voltage (min) | 220 |
| Output operation voltage (max) | 240 |
| Output frequency regulation | 50/60 |
| Surge energy rating | 480 |
| Number of output phases | 1 |
| Efficiency | 94.8 |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3 |
| Noise level | 55 |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Auto-restart | Yes |
| Ports & interfaces | |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | Hardwire |
| AC outlets quantity | 10 |
| Number of output IEC jumpers | 3 |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| SmartConnect port | No |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 1728 |
| Typical backup time at full load | 5.2 |
| Typical backup time at half load | 14.5 |
| Battery life (max) | 5 |
| Battery recharge time | 1.5 |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Cold start | Yes |
| Design | |
| Form factor | Rackmount/Tower |
| Rack capacity | 6U |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Status |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -15 - 45 |
| Operating relative humidity (H-H) | 0 - 95 |
| Storage relative humidity (H-H) | 0 - 95 |
| Operating altitude | 0 - 3000 |
| Non-operating altitude | 0 - 15000 |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE |
| Packaging content | |
| Rack mount kit | Yes |
| Cables included | USB cable |
| Management card included | Yes |
| Quick installation guide | Yes |
| Weight & dimensions | |
| Width | 715 |
| Depth | 432 |
| Height | 263 |
| Weight | 111.8 |
| Packaging data | |
| Bracket | Yes |
| Temperature sensor | Yes |
| Warranty card | Yes |
| Software CD | Yes |
| Package width | 600 |
| Package depth | 1000 |
| Package height | 461 |
| Package weight | 130 |
| Logistics data | |
| Products per pallet | 1 |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 18632.76 |
| Other features | |
| Packaging content | Web/SNMP Management Card |
Specifications
| Brand | APC |
