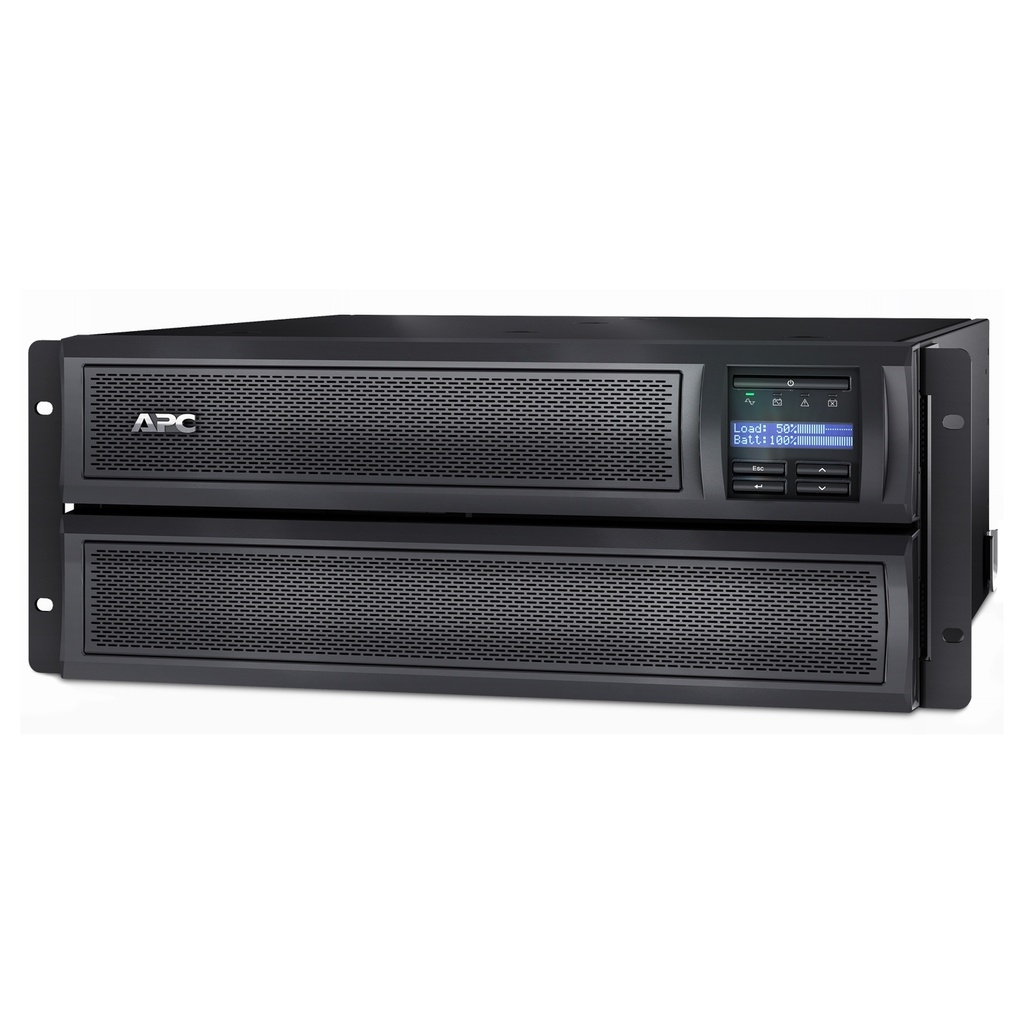

APC Smart-UPS X SMX3000HV - 3000VA, 8x C13 + 2x C19 outlet, USB, expandable runtime, short depth, Line-Interactive, 3 kVA, 2700 W, Sine, 140 V, 280 V
APC Smart-UPS X SMX3000HV - 3000VA, 8x C13 + 2x C19 outlet, USB, expandable runtime, short depth. UPS topology: Line-Interactive, Output power capacity: 3 kVA, Output power: 2700 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 738 VAh, Typical backup time at full load: 6.25 min. Form factor: Rackmount/Tower, Product colour: Black, Stainless steel, Rack capacity: 4U. Compliance certificates: RoHS, Certification: C-tick, CE, CSA, EN 50091-1, EN 50091-2, EN 60950, FCC Part 15 Class A, GOST, IRAM, UL 1778, VDE, ...
| Features | |
|---|---|
| UPS topology | Line-Interactive |
| Output power capacity | 3 |
| Output power | 2700 |
| Waveform | Sine |
| Input operation voltage (min) | 140 |
| Input operation voltage (max) | 280 |
| Input frequency | 50/60 |
| Output operation voltage (min) | 208 |
| Output operation voltage (max) | 240 |
| Output frequency regulation | 50/60 |
| Automatic Voltage Regulation (AVR) | Yes |
| Surge energy rating | 645 |
| Hold time (min) | 2 |
| Hold time (max) | 10 |
| Efficiency | 98.5 |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Noise level | 55 |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Auto-restart | Yes |
| Ports & interfaces | |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | C20 coupler |
| AC outlets quantity | 10 |
| Number of output IEC jumpers | 2 |
| SmartSlot | Yes |
| SmartConnect port | No |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 738 |
| Typical backup time at full load | 6.25 |
| Typical backup time at half load | 18 |
| Battery life (max) | 5 |
| Battery recharge time | 3 |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Design | |
| Form factor | Rackmount/Tower |
| Rack capacity | 4U |
| Cable length | 1.83 |
| Product colour | Black, Stainless steel |
| Display type | LCD |
| LED indicators | Status |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -15 - 45 |
| Operating relative humidity (H-H) | 0 - 95 |
| Storage relative humidity (H-H) | 0 - 95 |
| Operating altitude | 0 - 3000 |
| Non-operating altitude | 0 - 15000 |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | C-tick, CE, CSA, EN 50091-1, EN 50091-2, EN 60950, FCC Part 15 Class A, GOST, IRAM, UL 1778, VDE, REACH |
| Packaging content | |
| Rack mount kit | Yes |
| Cables included | RS-232, USB cable |
| Management card included | No |
| Manual | Yes |
| Quick installation guide | Yes |
| Weight & dimensions | |
| Width | 178 |
| Depth | 483 |
| Height | 432 |
| Weight | 38.6 |
| Packaging data | |
| Software CD | Yes |
| Package width | 586 |
| Package depth | 633 |
| Package height | 330 |
| Package weight | 47.7 |
| Logistics data | |
| Products per pallet | 6 |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 2447.6 |
| Other features | |
| Nominal output voltage | 230 |
Specifications
| Brand | APC |
