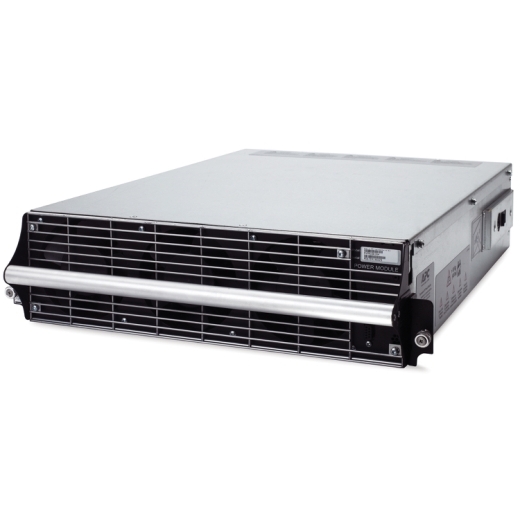

APC Symmetra PX Power Module, 10/16kW, 400V

https://www.bosspacific.com.au/web/image/product.template/73343/image_1920?unique=dfae1be

APC Symmetra PX Power Module, 10/16kW, 400V
Main Input Voltage 400 V 3 phases
Main Output Voltage 230 V 400 V 3 phases
Rated power in W 16000 W
Rated power in VA 16000 VA
Output connector type Hard wire 5-wire (3P + N + E) 1
Provided equipment Installation guide
Number of battery filled slots 0
Number of battery free slots 0
Additional information Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage
Network frequency 40...70 Hz
Number of input connectors 1 hard wire 5-wire (3P + N + E)
Input voltage limits 340...477 V
Maximum input current 33 A
Max short time withstand current 30 kA
Input harmonic distortion Less than 5 % for full load
Input Power Factor at Full Load 0.99
Maximum configurable power in W 16000 W
Harmonic distortion Less than 2 %
Output frequency 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains, 50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised
Crest factor Unlimited
UPS type Double conversion online
Output voltage tolerance +/- 1% static and +/- 5% at 100% load step
Output harmonic distortion < 2% for 0 to 100% linear load and < 6% for full non-linear load
Output overload operation 10 minutes at 125% and 60 seconds at 150%
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 %
Operating altitude 0...3333 ft
Ambient air temperature for storage -15…40 °C
Storage Relative Humidity 0…95 %
Storage altitude 0.00…4572.00 m
Acoustic level 63 dBA
Heat dissipation 2573 Btu/h
NEMA degree of protection NEMA 1
Compatible Spare parts- WSYPM10K16H

$ 12,700.00 12700.0 AUD $ 12,700.00

Not Available For Sale

  • Brand
  • Weight (kg)
  • Product Width (cm)
  • Product Height (cm)
  • Warranty
  • M.2 Length

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

Brand Apc
Weight (kg) 31.55
Product Width (cm) 700
Product Height (cm) 225
Warranty 12
M.2 Length 595
