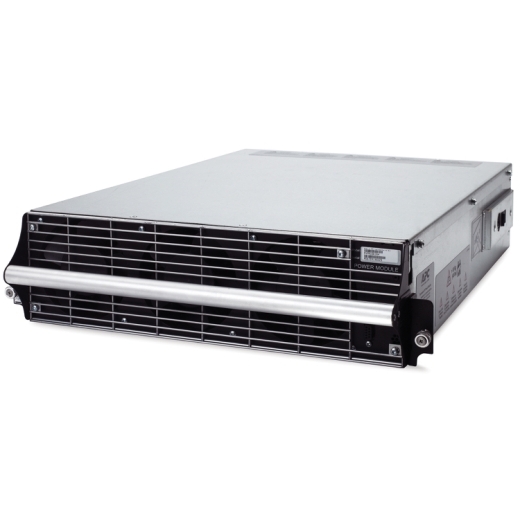

731304252153 APC Symmetra PX Power Module, 10/16kW, 400V

731304252153 APC Symmetra PX Power Module, 10/16kW, 400V

(0 review)

Product Code: 731304252153

APC Symmetra PX Power Module, 10/16kW, 400V
Main Input Voltage 400 V 3 phases
Main Output Voltage 230 V 400 V 3 phases
Rated power in W 16000 W
Rated power in VA 16000 VA
Output connector type Hard wire 5-wire (3P + N + E) 1
Provided equipment Installation guide
Number of battery filled slots 0
Number of battery free slots 0
Additional information Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage
Network frequency 40...70 Hz
Number of input connectors 1 hard wire 5-wire (3P + N + E)
Input voltage limits 340...477 V
Maximum input current 33 A
Max short time withstand current 30 kA
Input harmonic distortion Less than 5 % for full load
Input Power Factor at Full Load 0.99
Maximum configurable power in W 16000 W
Harmonic distortion Less than 2 %
Output frequency 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains, 50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised
Crest factor Unlimited
UPS type Double conversion online
Output voltage tolerance +/- 1% static and +/- 5% at 100% load step
Output harmonic distortion < 2% for 0 to 100% linear load and < 6% for full non-linear load
Output overload operation 10 minutes at 125% and 60 seconds at 150%
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 %
Operating altitude 0...3333 ft
Ambient air temperature for storage -15…40 °C
Storage Relative Humidity 0…95 %
Storage altitude 0.00…4572.00 m
Acoustic level 63 dBA
Heat dissipation 2573 Btu/h
NEMA degree of protection NEMA 1
Compatible Spare parts- WSYPM10K16H

$ 12,700.00 $ 12,700.00 (Tax excluded)

  • Brand
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

APC Symmetra PX Power Module, 10/16kW, 400V, Power module, Black, Grey, 63 dB, 16000 VA, 16000 W, 400 V

APC Symmetra PX Power Module, 10/16kW, 400V. Product type: Power module, Product colour: Black, Grey, Noise level: 63 dB. Load capacity: 16000 VA, Capacity: 16000 W, Input voltage: 400 V. Certification: CE,EN 50091-1,EN 50091-3,FCC Part 15 Class A,VFI-SS-111. Width: 483 mm, Depth: 70 mm, Height: 132 mm. Package width: 700 mm, Package depth: 595 mm, Package height: 225 mm

Features
Product typePower module
Product colourBlack, Grey
Noise level63
Power
Load capacity16000
Capacity16000
Input voltage400
Input frequency40/70
Output voltage400
Number of phases3
Maximum total current draw per phase33
Output power capacity16
Certificates
CertificationCE,EN 50091-1,EN 50091-3,FCC Part 15 Class A,VFI-SS-111
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-15 - 40
Operating relative humidity (H-H)0 - 95
Storage relative humidity (H-H)0 - 95
Operating altitude0 - 1015
Non-operating altitude0 - 4572
Weight & dimensions
Width483
Depth70
Height132
Weight28.5
Packaging data
Package width700
Package depth595
Package height225
Package weight59.5
Logistics data
Export Control Classification Number (ECCN)EAR99
Harmonized System (HS) code85079080

Specifications

Brand APC
