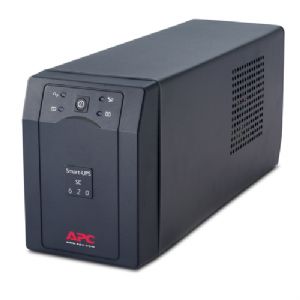

APC Smart-UPS SC 620VA 230V, Line-Interactive, 0.62 kVA, 390 W, Sine, 50/60 Hz, 320 J
APC Smart-UPS SC 620VA 230V. UPS topology: Line-Interactive, Output power capacity: 0.62 kVA, Output power: 390 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 132 VAh, Typical backup time at full load: 5.5 min. Form factor: Tower, Product colour: Grey, LED indicators: Battery replacement. Compliance certificates: RoHS, Certification: REACH, PEP, EOLI
| Features | |
|---|---|
| UPS topology | Line-Interactive |
| Output power capacity | 0.62 |
| Output power | 390 |
| Waveform | Sine |
| Input frequency | 50/60 |
| Automatic Voltage Regulation (AVR) | Yes |
| Surge energy rating | 320 |
| Hold time (max) | 2 |
| Efficiency | 97.4 |
| Emergency Power Off (EPO) | No |
| Noise level | 45 |
| Surge protection | Yes |
| Surge protection features | Digital Subscriber Line (DSL), Fax, Modem, Network |
| Audible alarm(s) | Yes |
| Audible alarm modes | Low battery alarm, Overload alarm |
| Auto-restart | Yes |
| Ports & interfaces | |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 4 |
| Number of output IEC jumpers | 2 |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| SmartSlot | No |
| SmartConnect port | No |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 132 |
| Typical backup time at full load | 5.5 |
| Typical backup time at half load | 15.8 |
| Battery life (max) | 5 |
| Battery recharge time | 5.5 |
| Automatic battery test | Yes |
| Design | |
| Form factor | Tower |
| Product colour | Grey |
| LED indicators | Battery replacement |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -15 - 45 |
| Operating relative humidity (H-H) | 0 - 95 |
| Storage relative humidity (H-H) | 0 - 95 |
| Operating altitude | 0 - 3000 |
| Non-operating altitude | 0 - 15000 |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | REACH, PEP, EOLI |
| Packaging content | |
| Cables included | RS-232 |
| Management card included | No |
| Manual | Yes |
| Weight & dimensions | |
| Width | 119 |
| Depth | 375 |
| Height | 168 |
| Weight | 12.3 |
| Packaging data | |
| Software CD | Yes |
| Package width | 262 |
| Package depth | 508 |
| Package height | 318 |
| Package weight | 13.2 |
| Logistics data | |
| Products per pallet | 12 |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 574.74 |
| Other features | |
| Nominal output voltage | 230 |
| Nominal input voltage | 230 |
Specifications
| Brand | APC |
