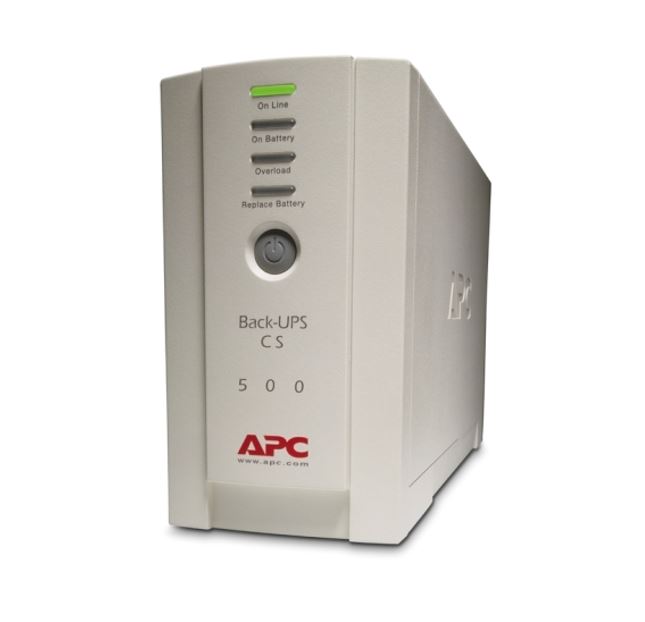

APC Back-UPS, 500VA/300W, Tower, 230V, 4x IEC C13 Outlets , User Replaceable Battery, Standby (Offline), 0.5 kVA, 300 W, Sine, 160 V, 300 V
APC Back-UPS, 500VA/300W, Tower, 230V, 4x IEC C13 Outlets , User Replaceable Battery. UPS topology: Standby (Offline), Output power capacity: 0.5 kVA, Output power: 300 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery capacity: 83 VAh. Form factor: Tower, Product colour: Beige, Cable length: 1.83 m. Compliance certificates: RoHS, Certification: C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE, REACH
| Features | |
|---|---|
| UPS topology | Standby (Offline) |
| Output power capacity | 0.5 |
| Output power | 300 |
| Waveform | Sine |
| Input operation voltage (min) | 160 |
| Input operation voltage (max) | 300 |
| Input frequency | 50/60 |
| Output frequency regulation | 47 - 63 |
| Surge energy rating | 310 |
| Hold time (min) | 6 |
| Hold time (max) | 10 |
| Efficiency | 99 |
| Noise level | 40 |
| Surge protection | Yes |
| Surge protection features | Digital Subscriber Line (DSL), Fax, Modem, Telephone |
| Power protection features | Overload |
| Audible alarm(s) | Yes |
| Audible alarm modes | Low battery alarm, Overload alarm |
| Ports & interfaces | |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 4 |
| Number of output IEC jumpers | 2 |
| USB port | Yes |
| SmartSlot | No |
| SmartConnect port | No |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 83 |
| Battery voltage | 12 |
| Typical backup time at full load | 3.8 |
| Typical backup time at half load | 13.8 |
| Battery life (max) | 6 |
| Battery recharge time | 8 |
| Automatic battery test | Yes |
| Design | |
| Form factor | Tower |
| Cable length | 1.83 |
| Product colour | Beige |
| LED indicators | Battery replacement |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -15 - 45 |
| Operating relative humidity (H-H) | 0 - 95 |
| Storage relative humidity (H-H) | 0 - 95 |
| Operating altitude | 0 - 3000 |
| Non-operating altitude | 0 - 15000 |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE, REACH |
| Packaging content | |
| Cables included | Phone (RJ-11), USB cable |
| Management card included | No |
| Quick installation guide | Yes |
| Sustainability | |
| Sustainability certificates | ENERGY STAR, Green Premium |
| Weight & dimensions | |
| Width | 91 |
| Depth | 284 |
| Height | 165 |
| Weight | 6.32 |
| Packaging data | |
| Warranty card | Yes |
| Software CD | Yes |
| Bundled software | PowerChute Serial Edition |
| Package width | 241 |
| Package depth | 368 |
| Package height | 178 |
| Package weight | 7.05 |
| Logistics data | |
| Products per pallet | 48 |
| Harmonized System (HS) code | 85078000 |
| Products per master (outer) case | 1 |
| Other features | |
| Nominal output voltage | 230 |
| Nominal input voltage | 230 |
| Filtering | Yes |
| Packaging content | Detachable 1.2m IEC power cord Detachable 1.8 m IEC power cord |
Specifications
| Brand | APC |
