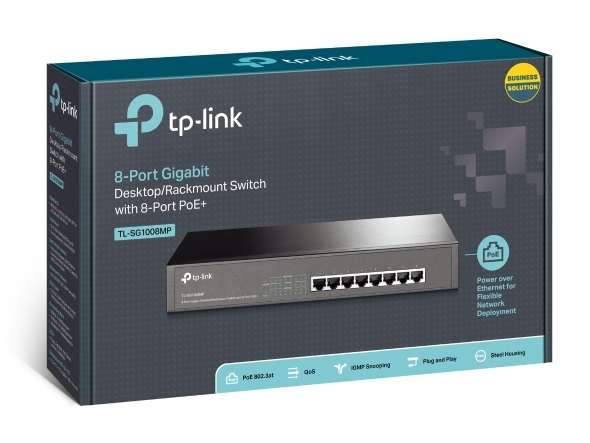

6935364086770 TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+ (Replacement model of TL-SG1008PE)

Product Code: 6935364086770

TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+ (Replacement model of TL-SG1008PE)
• 8 10/100/1000Mbps RJ45 ports
• Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
• Works with IEEE 802.3af/at compliant devices, expanding home and office networks
• Innovative energy-efficient technology reduces power consumption by up to 75%*
• Supports PoE+ standard with total power budget of 126W and up to 30W per port
• Plug and play design, no configuration required
HARDWARE FEATURES
Interface 8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity 1
Physical Security Lock No
Power Supply 100-240VAC, 50/60Hz
PoE+ Ports(RJ45) Standard: 802.3at/af compliant
PoE+ Ports: 8 Ports
Power Supply: 126W
Backbound Bandwidth 16Gbps
Mac Address Table 4K
Buffer Size 1.5Mbits
Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm)
Mounting Rack Mountable
Max Power Consumption 9.89W(220V/50Hz. no PD connected)
140.67W(110V/60Hz. with 126W PD connected)
Max Heat Dissipation 33.74BTU/h(no PD connected)
492.56BTU/h(with 126W PD connected
)
SOFTWARE FEATURES
Advanced Features Compatible With IEEE 802.3af/at Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
Transfer Method Store-And-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SG1008MP, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet
